Product info

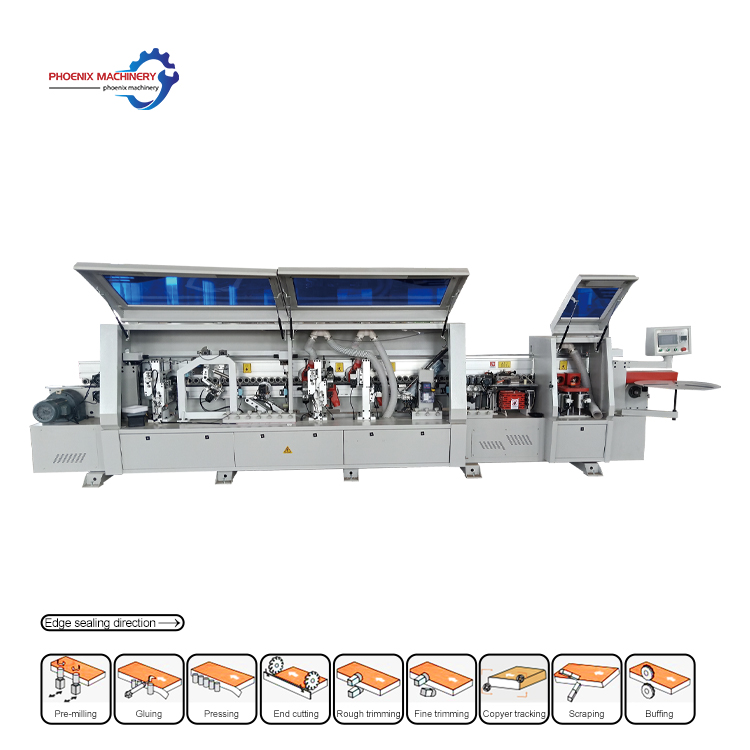

This machine is suitable for straight edge banding and trimming of MDF, particleboard, solid wood board, particleboard, polymer door board, plywood and other boards.
| Model | PM50F1 |
| Banding tape thickness | 0.4-3 mm |
| Banding tape width | 12-65 mm |
| Work piece thickness | 10-60 mm |
| Work piece length | >=100 mm |
| Work piece width | >=50 mm |
| Heating power | 1.8 KW |
| Feeding motor power | 3.7 KW |
| Pre-milling motor power | 2.2 KW x 2 |
| Glue spreading power | 0.75 KW |
| End trimming power | 0.55 KW x 2 |
| Rough trimming motor power | 0.75 KW x 2 |
| Fine trimming power | 0.75 KW x 2 |
| Corner rounding motor power | 0.55 KW x 2 |
| Polishing motor power | 0.37 KW x 2 |
| Feeding speed | 15-24 m/min |
| Air pressure | 0.7 Mpa |
| Overall dimension | 6700x880x1550 mm |
| Packing size | 6750x900x1600 mm |
| N.W. | 2500 KGS |
| G.W. | 2580 KGS |
