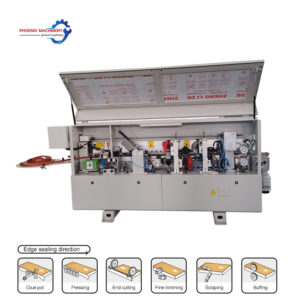

This machine is suitable for straight edge banding and trimming of MDF, particleboard, solid wood board, particleboard, polymer door board, plywood and other boards. Functions: preheating, gluing, trimming, scraping, polishing, etc. The edging is smooth and the edging line is straight. This machine is stable and reliable, durable, and the price is favorable. Especially suitable for large and medium-sized furniture production enterprises.

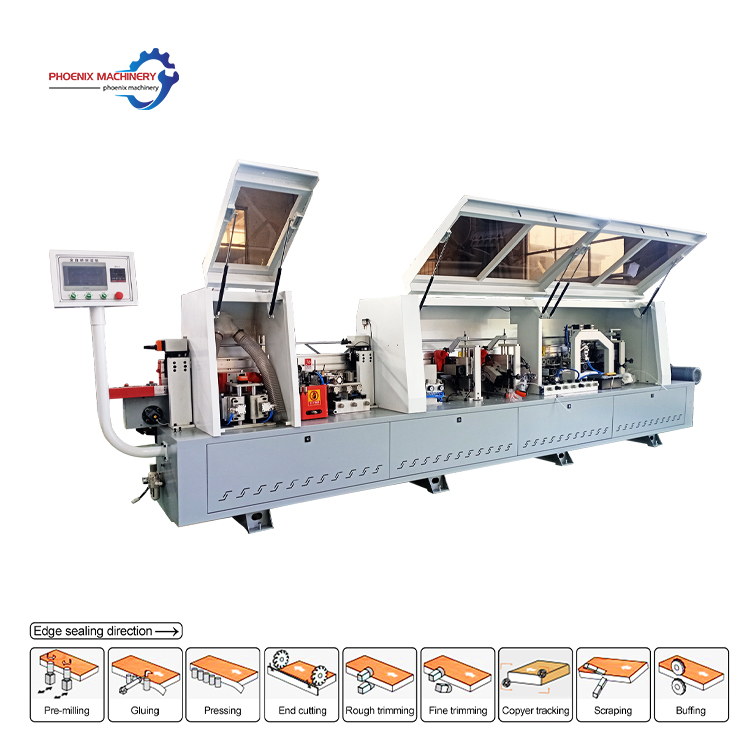

| Machine model | PME268 |
| Work thickness | 10-50mm |
| Rolling edge-banding belt height | 15-55mm |
| Rolling edge-banding belt thickness | 0.4-3mm |
| Min work piece width | 60mm |
| Min work piece length | 150mm |
| Work piece delivery speed | 16-18m/min |
| Gross power | 11.5kw |
| Rated air pressure | 6.5kg/cm³ |
| Voltage | 380V/50HZ/3phase |
| Weight | 1400KG |
| Overall dimensions | 5400mm*650mm*1400mm |
