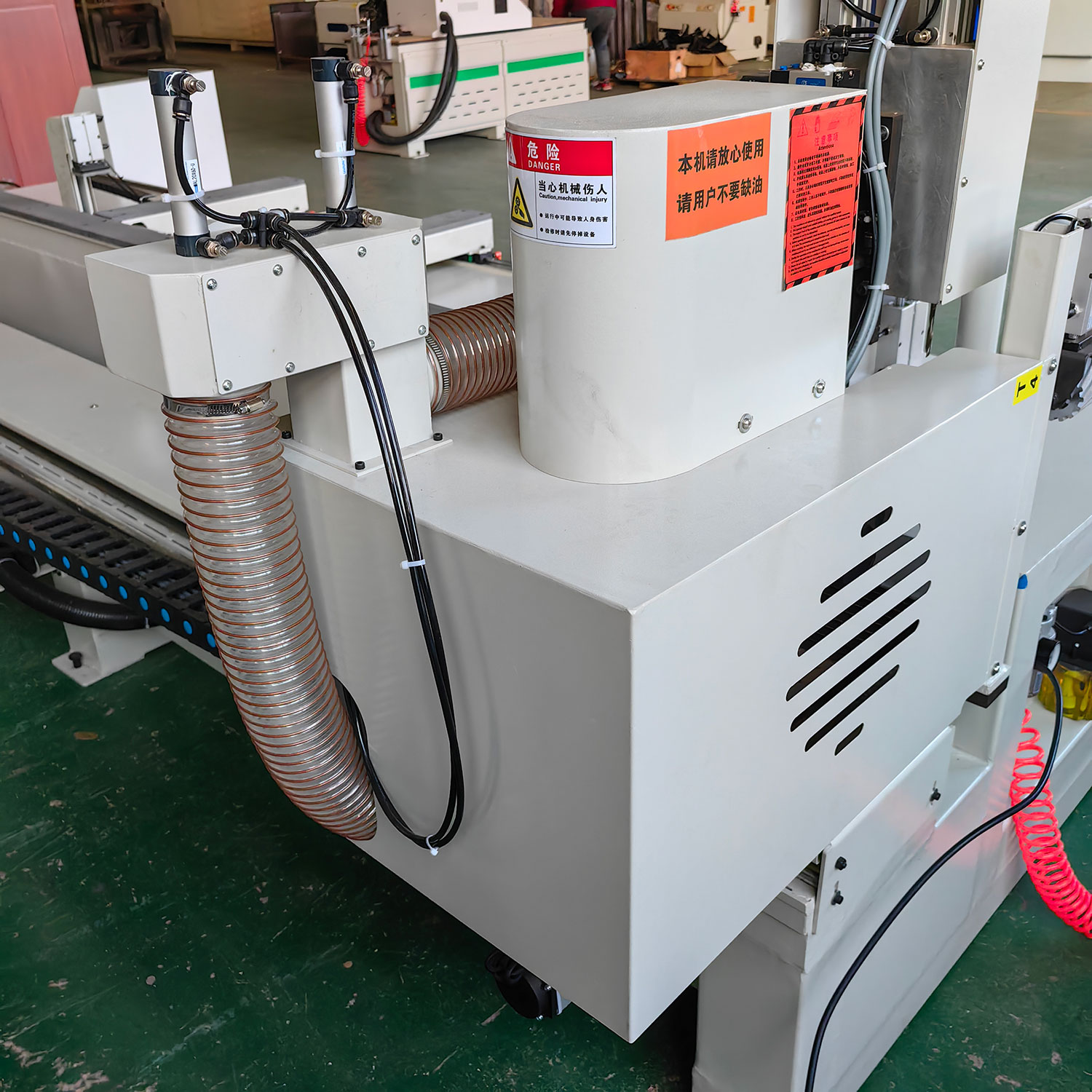

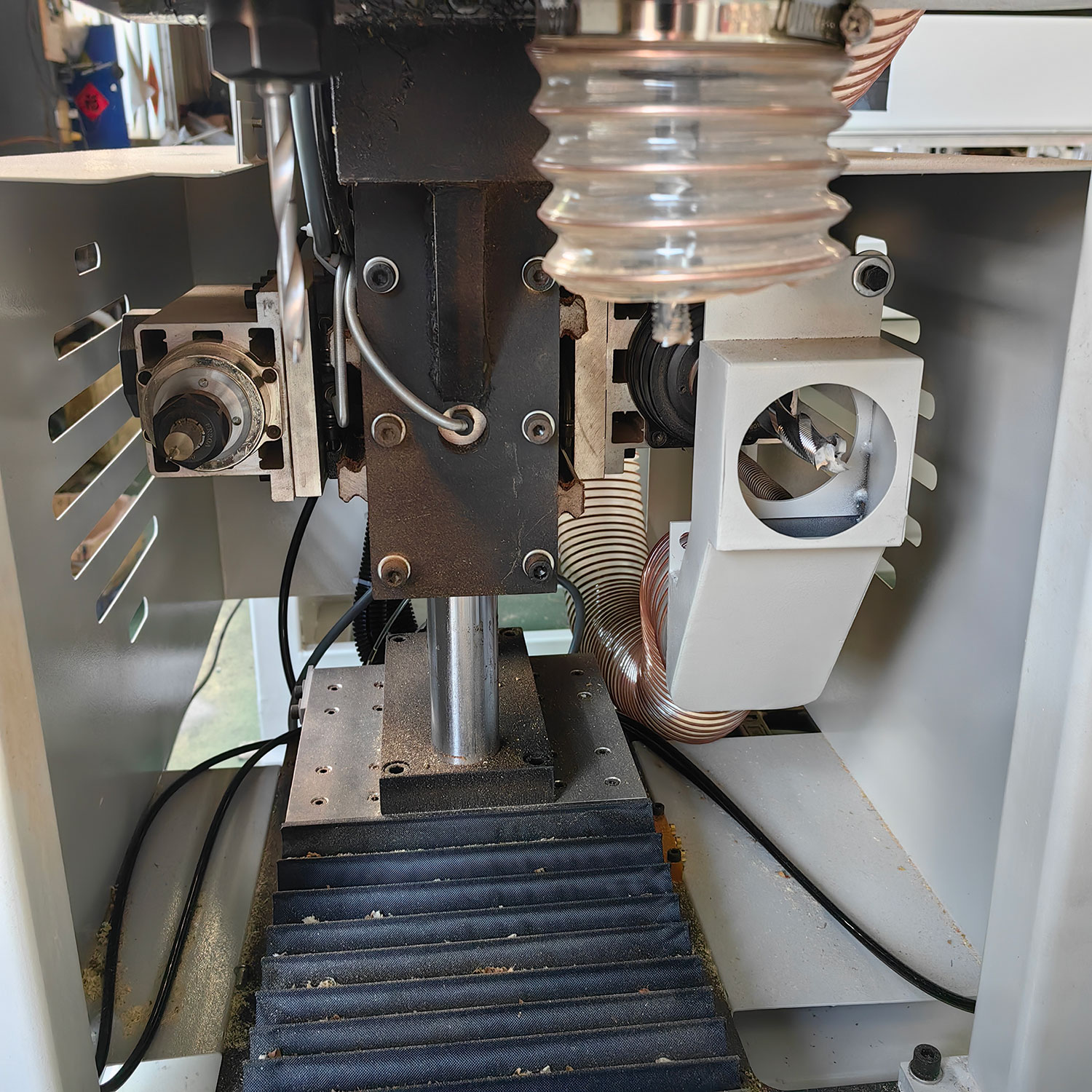

PMD2800

CNC Door Lock Hole Drilling Hinge Boring Machine Door Hole Slotting Machine mortising machine

Product info

1.It is mainly used to drill and mill a variety of holes and slots on the wood door panels, such as lock holes, hinge holes,hinge slots, door closer holes and slots, etc.

2.With four different spindles of different power, this machine can complete a variety of drilling work with high efficiency and excellent drilling precision.

3.All the famous-brand servo motors, guide rails, racks and other parts can ensure smooth and reliable operation, reduce abrasion, and extend the lifespan of the machine.

ModelPMD2800
Maximum milling groove length2800mm
Maximum milling groove depth130mm
Maximum milling groove width80mm
Side slot motor6.0kw
Side square hole motor2.2kw
Upper opening motor2.2kw
Upper slot milling motor2.2kw
Drive servo motor750w+750w+400w
Machine size3700*1700*1600mm
Weight800KGS
