Product info

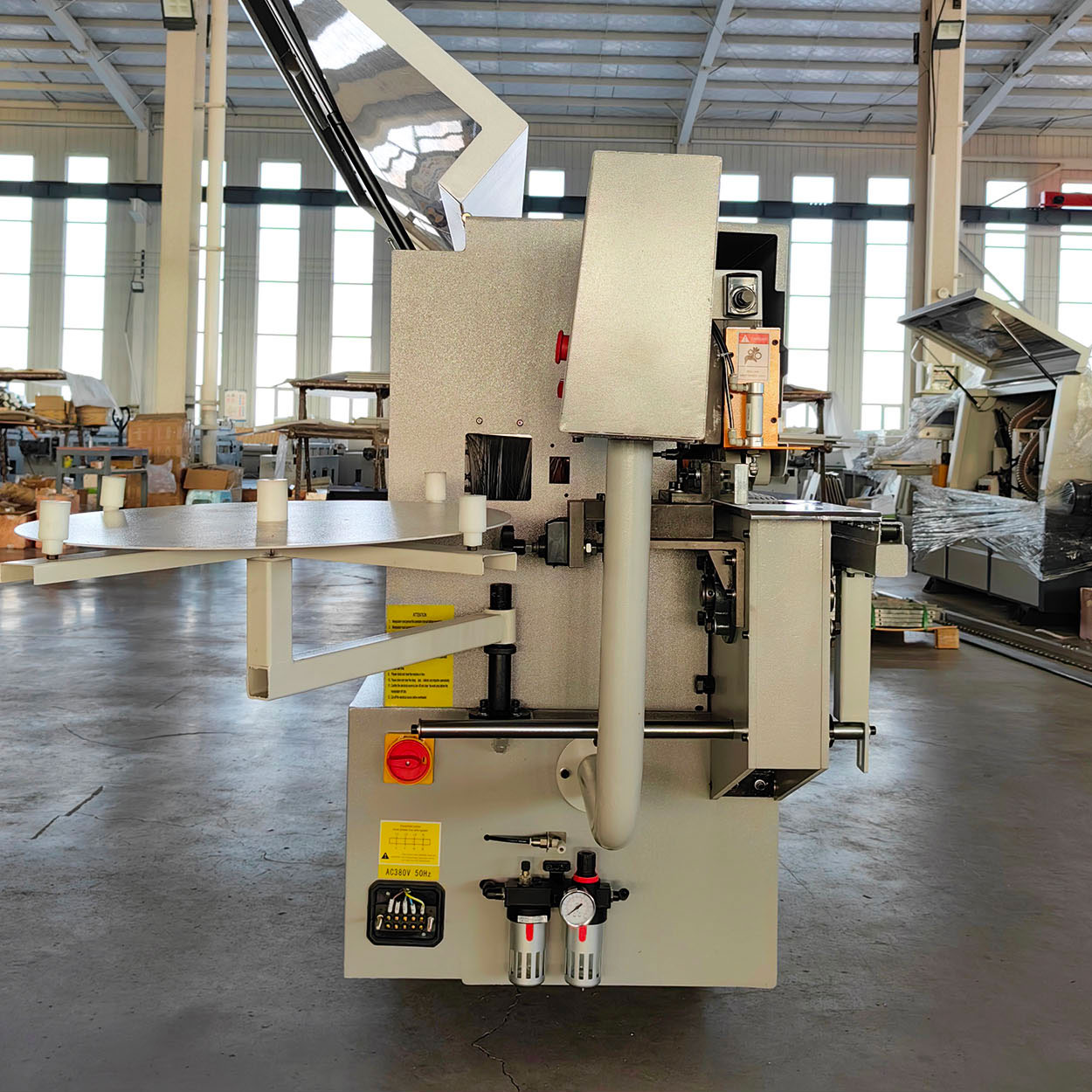

This is a fully automatic edge banding machine with the characteristics of high automation, high efficiency, high precision and beautiful appearance. It can complete the functions of gluing, edge banding, end cutting, rough trimming, fine trimming, scraping, polishing, etc.
Application:
The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming.
Functions:
Pre-milling, Gluing, End trimming, Fine trimming, Rough Trimming, Corner Rounding, Scraping, Buffing.
Feature:
Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
| Model | PM50B |
| Working Pressure | 0.7Mpa |
| Total power | 12KW |
| Feed speed | 16m/min |
| Panel Thickness | 10-60mm |
| Sheet length | ≥140mm |
| Panel Width | ≥50mm |
| Edge thickness | 0.4-3mm |
| Overall Size(L*W*H) | 3850*740*1260mm |
| Net Weight | 1155KG |
