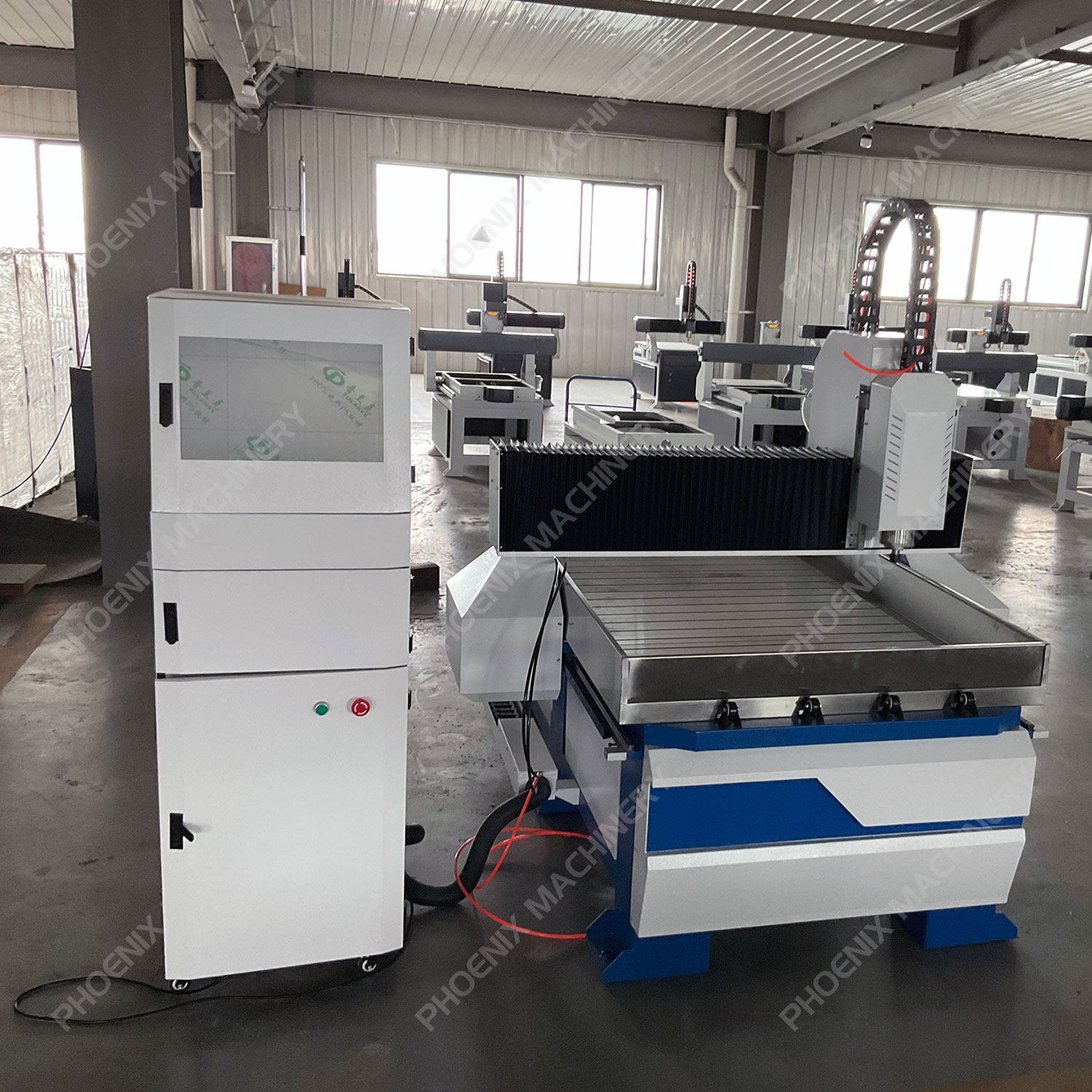

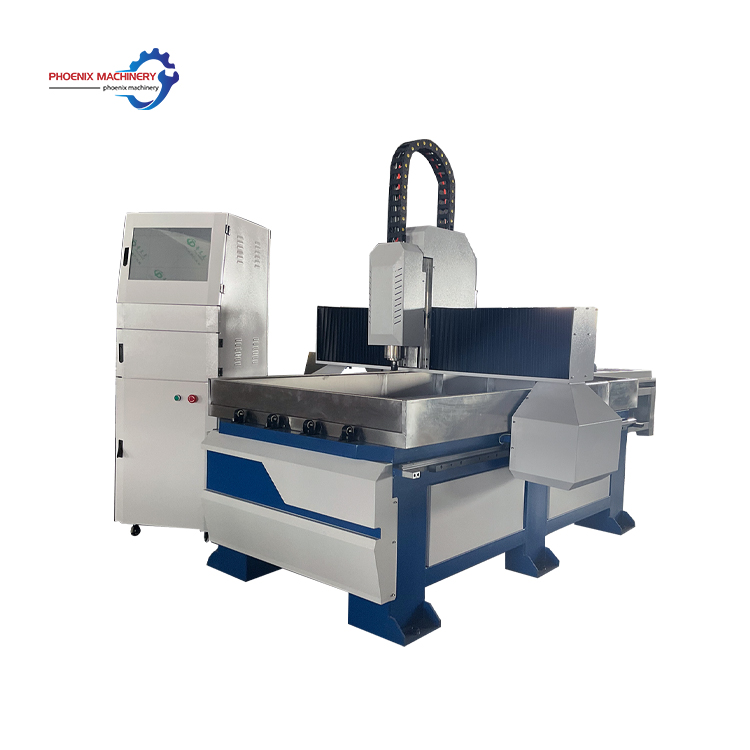

Small Size CNC Router 4040 6060 6090 Mold Making Milling Machine for Wood Aluminum Metal Price
| Machine model | PK4040 | PK6060 | PK6090 |
| Working area | 400*400mm | 600*600mm | 600*900mm |
| Machine structure | Cast iron structure, table move on Y axis | Cast iron structure, table move on Y axis | Cast iron structure, table move on Y axis |
| Feeding height | 160mm | 160mm | 160mm |

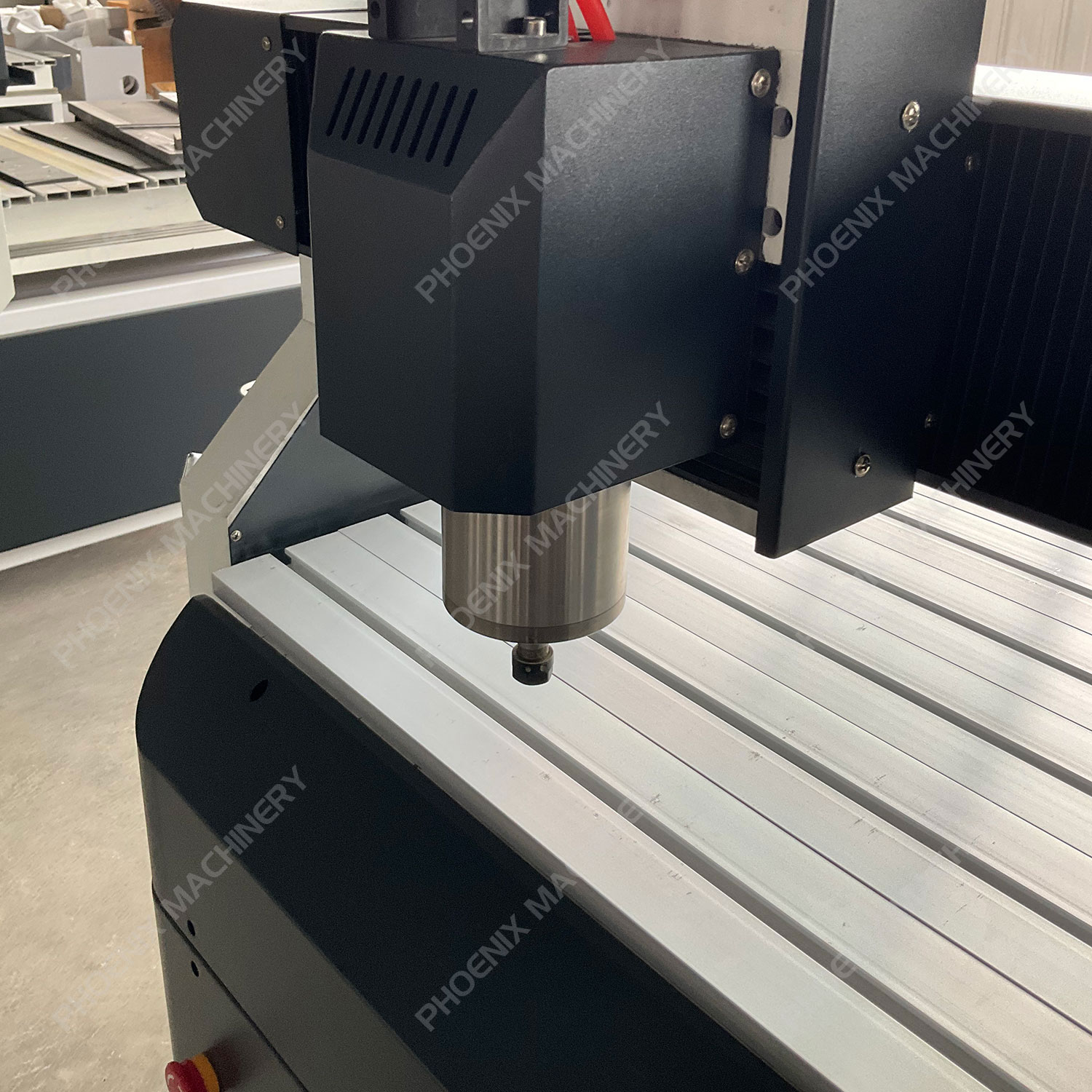

| Spindle | 3.2kW water cooling spindle | 3.2kW water cooling spindle | 3.2kW water cooling spindle |
| Spindle speed | 0~24000rpm | 0~24000rpm | 0~24000rpm |
| Control system | NC Studio / DSP（Option） | NC Studio / DSP（Option） | NC Studio / DSP（Option） |
| Drive and motor | Leadshine stepper/ servo driver and motor（Option） | Leadshine stepper/ servo driver and motor（Option） | Leadshine stepper/ servo driver and motor（Option） |
| X Y Z axis guide rail | square linear rails | square linear rails | square linear rails |
| Transmission | X Y Z axis TBI ball screw driver | X Y Z axis TBI ball screw driver | X Y Z axis TBI ball screw driver |
| Working voltage | AC220V/380V±10% / 50~60Hz | AC220V/380V±10% / 50~60Hz | AC220V/380V±10% / 50~60Hz |
| Working precision | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeatability precision | ±0.01mm | ±0.01mm | ±0.01mm |
| Command code | G code | G code | G code |
| Compatible software | Type3/Artcam//Mastercam/Ucancam etc | Type3/Artcam//Mastercam/Ucancam etc | Type3/Artcam//Mastercam/Ucancam etc |
| Machine tool work light | LED machine light | LED machine light | LED machine light |
| *The size, color, configuration and design can all be customized according to customer's requirements. |
