Product info

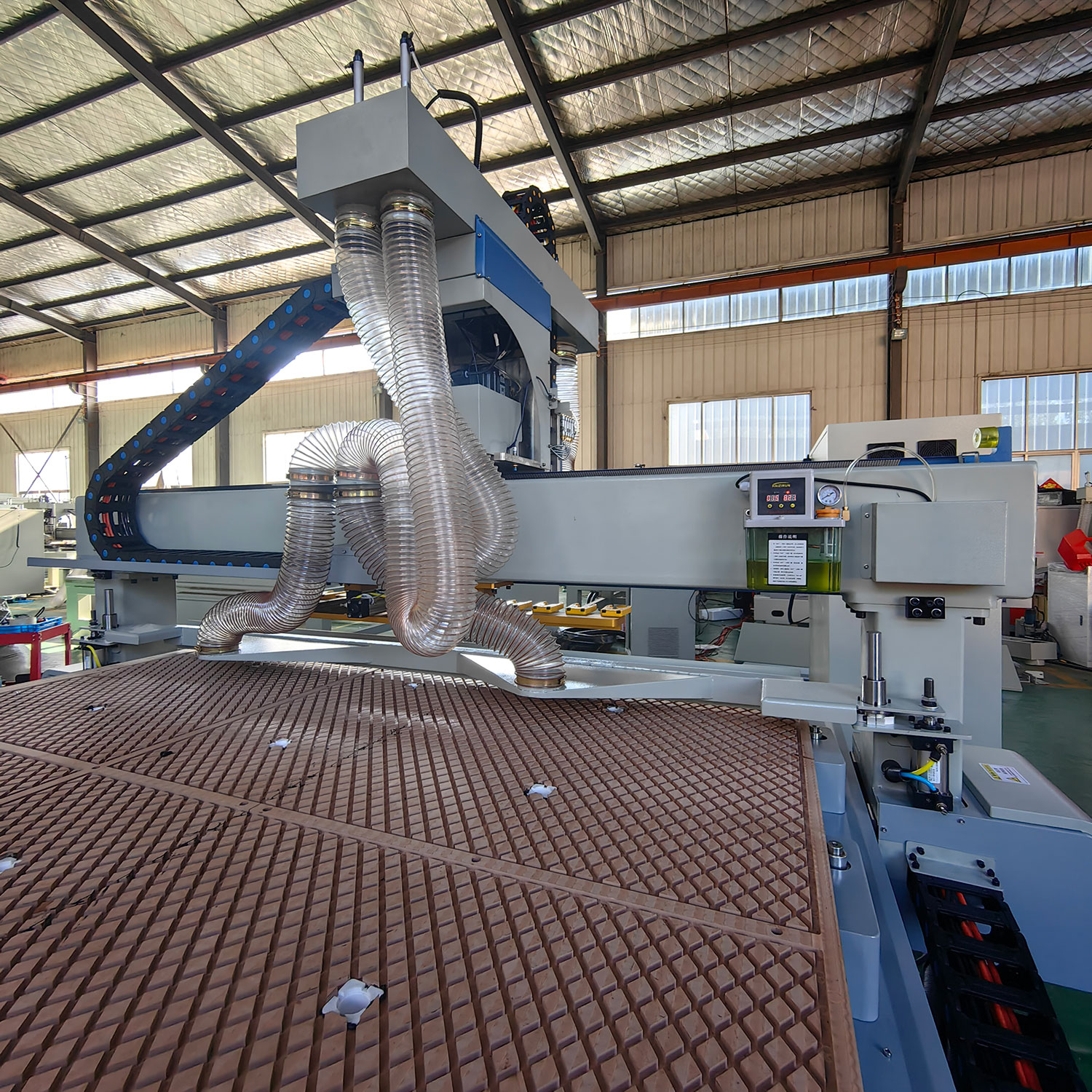

1.This furniture cabinet production line is higher efficiency and best-selling one among our production lines.
2.It includes three equipments auto-loading platform, ATC cnc router, auto-unloading platform.
3.The CNC machine with automatic tool change in the middle has the functions of automatic vertical drilling on cabinets, automatic change the required tools for slotting cutting, automatic unloading finished workpiece etc.

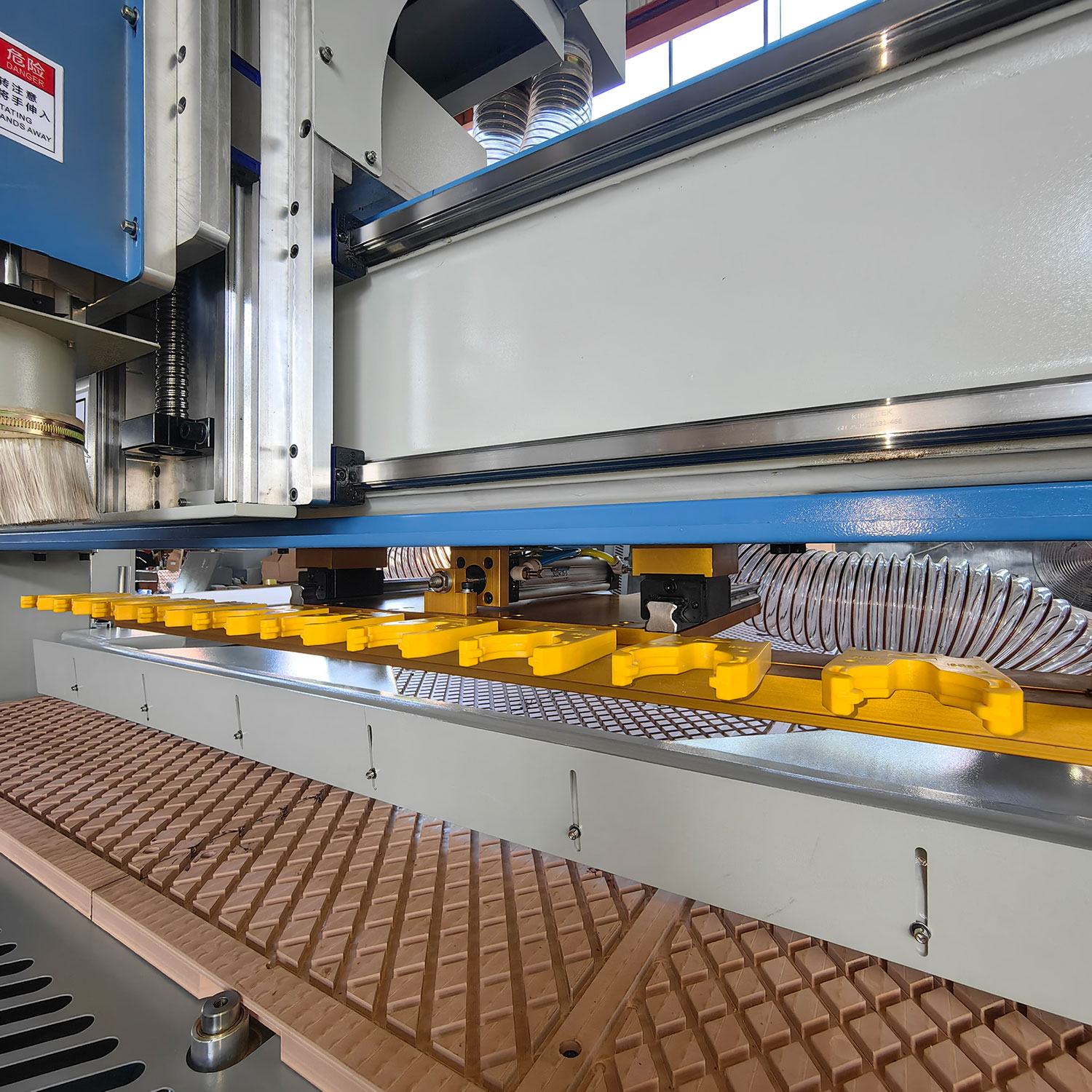

4.The disc-type tool change design greatly improves the processing efficiency, compare to linear tool change storage.
5.Both beginners and experienced users can independently operate the machine in not longer time with the help of engineer.
| Model | PK2040 ATC |
| X,Y,Z Working Area | 2000*4000*200 mm |
| Spindle brand | CC/JST (Top brands in China) |
| Spindle power | 9KW（ ISO30）（air cooling spindle） |
| Drive motor brand | Leadshine (Top brand in China |
| Drive motor | Servo motor 1.5KW*3 |
| Inverter power | 11KW |
| Tool change speed | High-speed switching |
| Air pressure | 0.7 Mpa |
| Double bag dust collector | 5.5KW |
| Spindle Speed | 0-24000 rpm |
| Machining accuracy | +-0.02mm |
| Maximum working speed | 20000mm/min |
| Maximum travel speed | 80000mm/min |
| Number of positioning cylinders | X（3）+Y（8） position cylinder |
| Number of tools | 12 tools automatic switching |
| Vacuum adsorption pump power | 7.5 KW |
| Overall dimension | 5080x3000x2400 mm |
| N.W. | 2550 KG |
