Product info

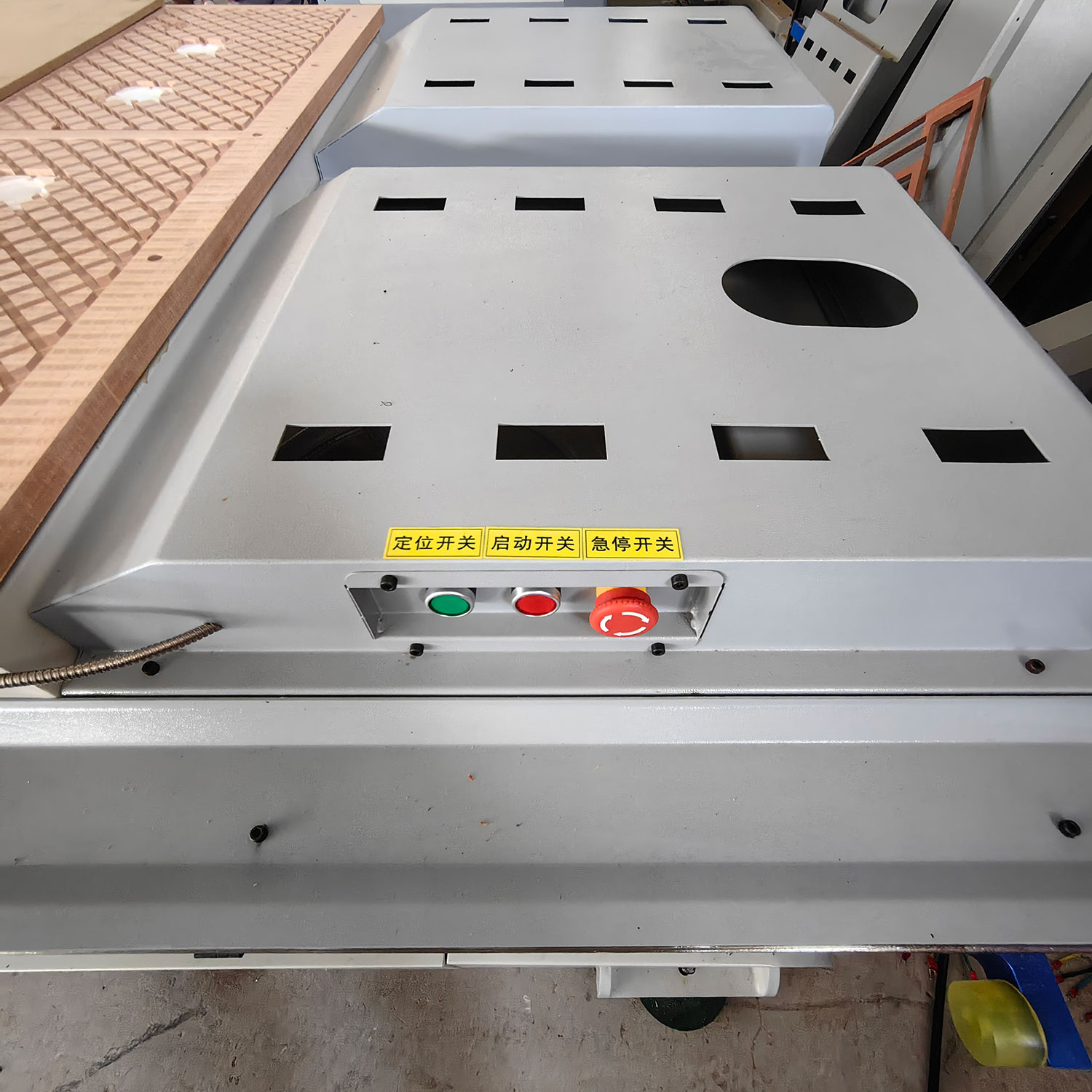

“Automatic loading and unloading tables are optional, design of two working tables is improve efficiency“
- Drilling: Adopts different diameter drills to drill different sizes hole on various boards.
- Grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.
- Cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.
- Milling: Adopts different shapes CNC milling tools to achieve beautiful designs.
- Hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
- Carving/engraving: 2D carving design on wooden, composite, or other soft raw materials.
If you need to do 3D design, please contact us to inquire about other 4/5 axis CNC machines for you.”
| Model | PK1325 ATC |
| Travelling Size | 2500*1300*200 mm |
| Spindle power | 9KW |
| Drive motor | servo motor 1.5KW*3 |
| Inverter power | 11KW |
| Tool change speed | High-speed switching |
| Air pressure | 0.7 Mpa |
| Double bag dust collector | 5.5KW |
| Spindle Speed | 0-24000 rpm |
| Machining accuracy | +-0.02mm |
| Maximum working speed | 20000mm/min |
| Maximum travel speed | 80000mm/min |
| Number of tools | 12 tools automatic switching |
| Vacuum adsorption pump power | 7.5 KW |
| Overall dimension | 3500x2300x2000 mm |
| N.W. | 2550 KG |
