PK1325

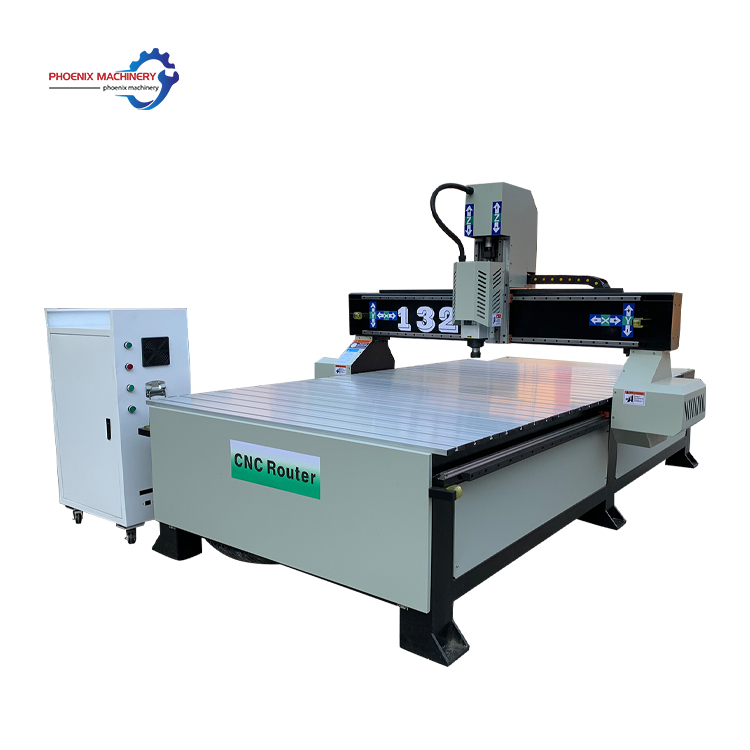

PK1325 Wood Router 1300*2500mm 3d Engraving Machine Cnc Router Machine For Furniture

Product info

Mainly for massive PVC foam board, acrylic, KT board wood cutting;

Used for all kinds of advertising signs, metal words, metal signs, party building signs and other processing;

Processing artificial stone, PVC, wood, bamboo, plexiglass, copper aluminum and other materials; Suitable for machining of mechanical parts, electrical and electrical insulation parts;

Suitable for plastic chemical parts, PCB, anti-double special board, epoxy resin, ABS, PP, PE and other carbon mixture processing;

Can be used in screen, wave board, bamboo, marble, organic board and other materials for a variety of exquisite patterns and text carving.

ModelPK1325
Travelling Size1300*2500*200mm
Optional Working Area1300*1300*200mm|4*4ft
1300*2500*200mm|4*8ft
1500*3000*200mm|5*10ft
2000*3000*200mm|6*10ft
2000*4000*200mm|6*13ft
2000*5000*200mm|6*16ft
2000*6000*200mm|6*20ft
could be customed for X,Y and Z axis
Countertop StructureAluminum Profile Counter Top
(Option: Vacuum Table )
Bed StructureWelded Steel
Spindle power3.5KW
Drive motorStepper/ Hybrid-servo/Servo Motor
Controller systemNcstudio
Spindle Speed0-18000 rpm
Guide railY20mm,X,Z20mm
Repositioning resolution±0.02mm
Empty running speed15-20m/min
Overall dimension2000*3000*1600mm
N.W.1000 KG
