Product info

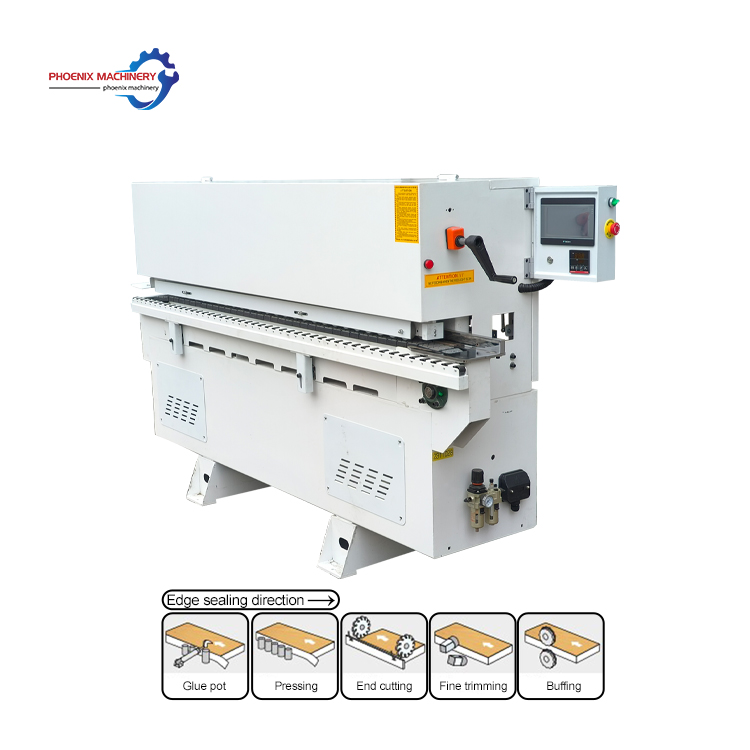

This machine is suitable for straight edge banding and trimming of MDF, particleboard, solid wood board, particleboard, polymer door board, plywood and other boards. Functions: preheating, gluing, trimming, scraping, polishing, etc. The edging is smooth and the edging line is straight. This machine is stable and reliable, durable, and the price is favorable. Especially suitable for large and medium-sized furniture production enterprises.
| Machine model | PE400 |
| Work thickness | 10-50mm |
| Rolling edge-banding belt height | 15-55mm |
| Rolling edge-banding belt thickness | 0.4-3mm |
| Min work piece width | 60mm |
| Min work piece length | 150mm |
| Work piece delivery speed | 10-14m/min |
| Gross power | 5.42kw |
| Rated air pressure | 6.5kg/cm³ |
| Voltage | 380V/50HZ/3phase |
| Weight | 550KG |
| Overall dimensions | 2300mm*620mm*1320mm |
