MZ73214

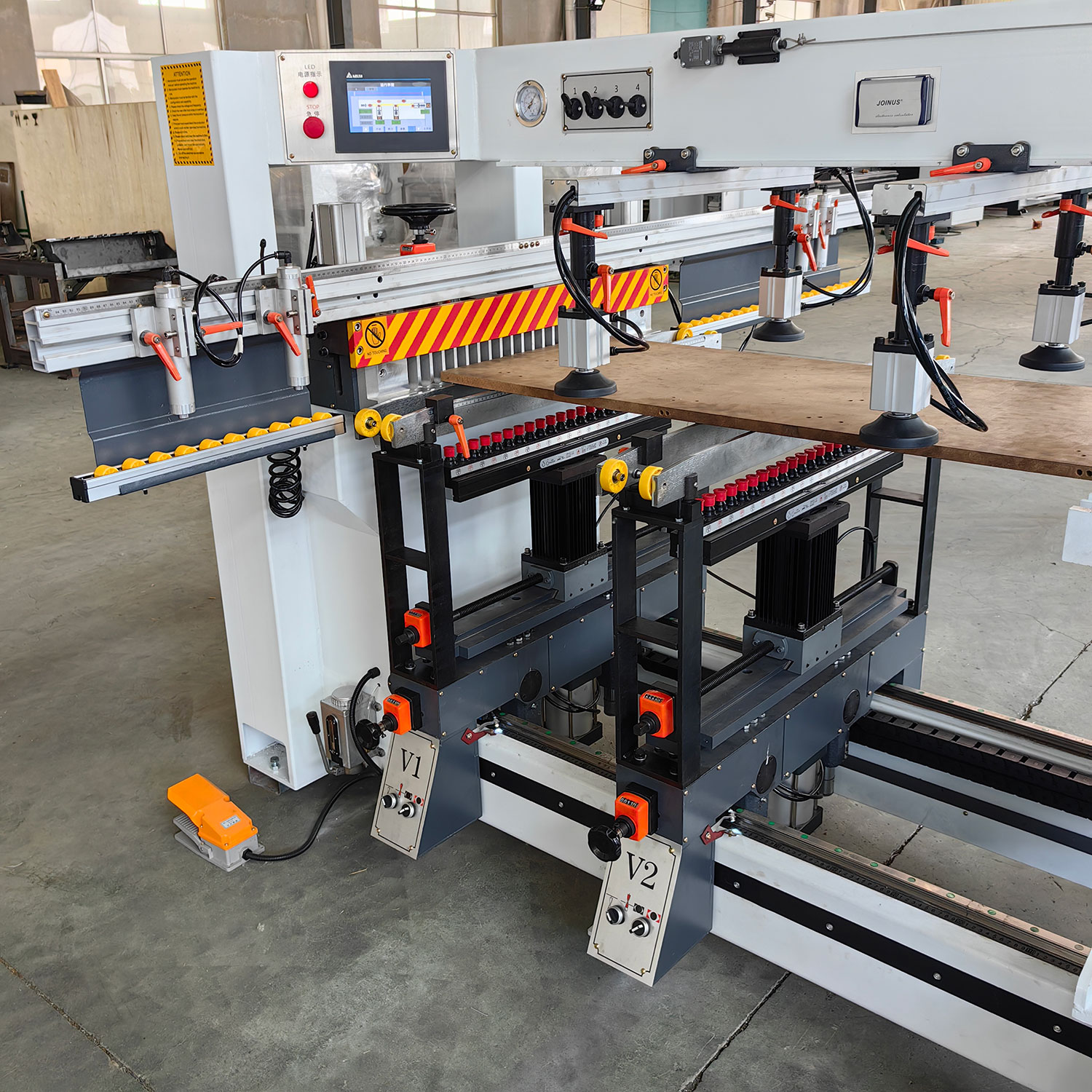

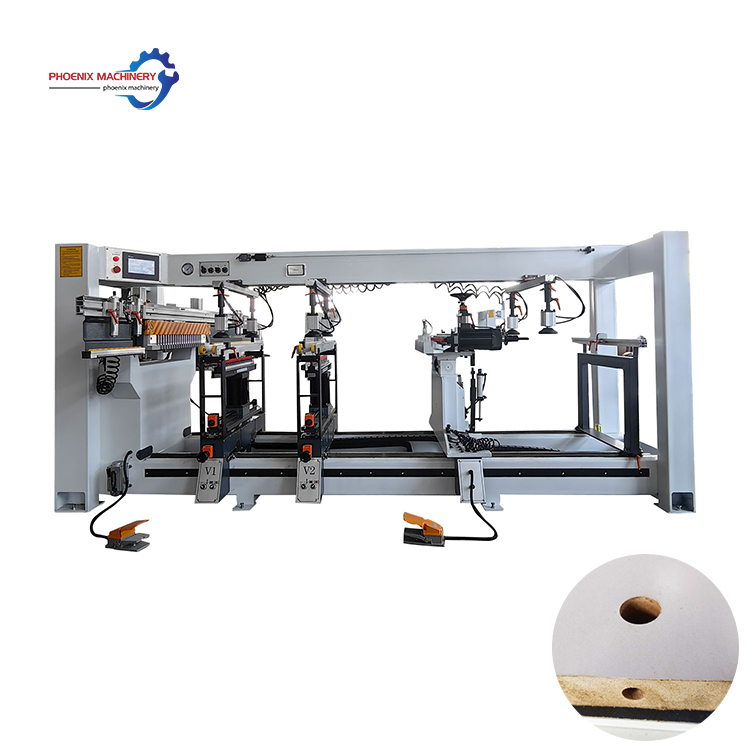

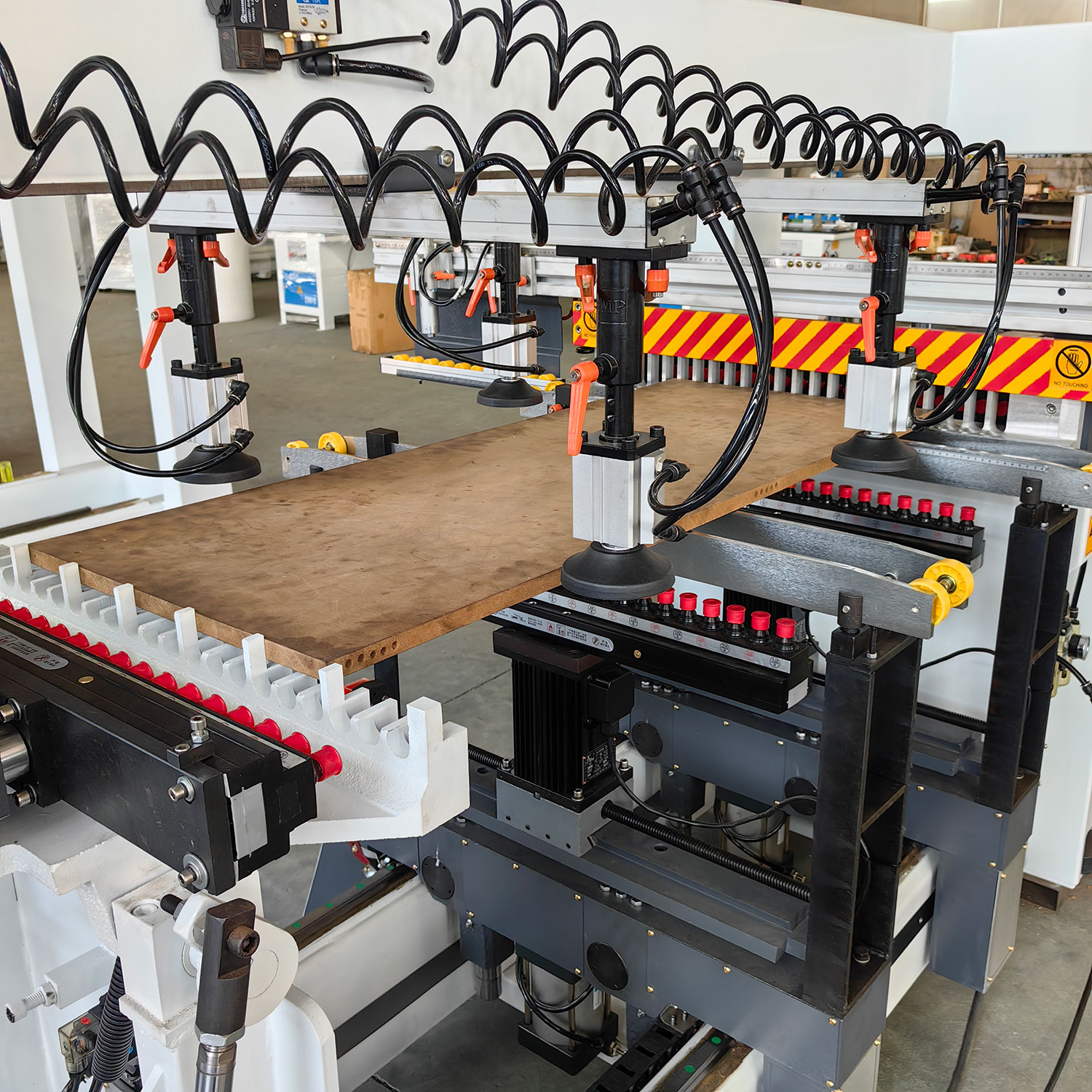

MZB73214 Four Line Multi-Spindle four head spindles Horizontal wood hole drilling machine

Product info

Suitable for all kinds of MDF, particleboard, plywood, PVC board, plexiglass, and solid wood plate drilling; Multi axis woodworking drilling machine can fine to help you build furniture, wood, etc., you can save your manpower and material resources, so that you put more down.

Features:

1.The drilling covers a large scope,and all the bits can be installed quickly and conveniently;

2.The drilling depth and distance are controlled photoelectric switch(optional)and linear guide, so it can find out the location quickly and accurately;

3.The adoption of imported drillers improves durability

4.Selection of high quality steel machine parts,and it is never deformation by high-strenth heat treatment;

5.Equipped with digital calculator to measure size which enhances the work efficiency.

Advantage:

1.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.

2.One-button control panel, operate easily.

ModelMZB73214
Maximum Drilling DiameterMax.=35mm(Single drilling)
D=13mm(Multiple drilling)
Maximum Drilling Depth60mm
Vertical machining holes distance140-2550mm

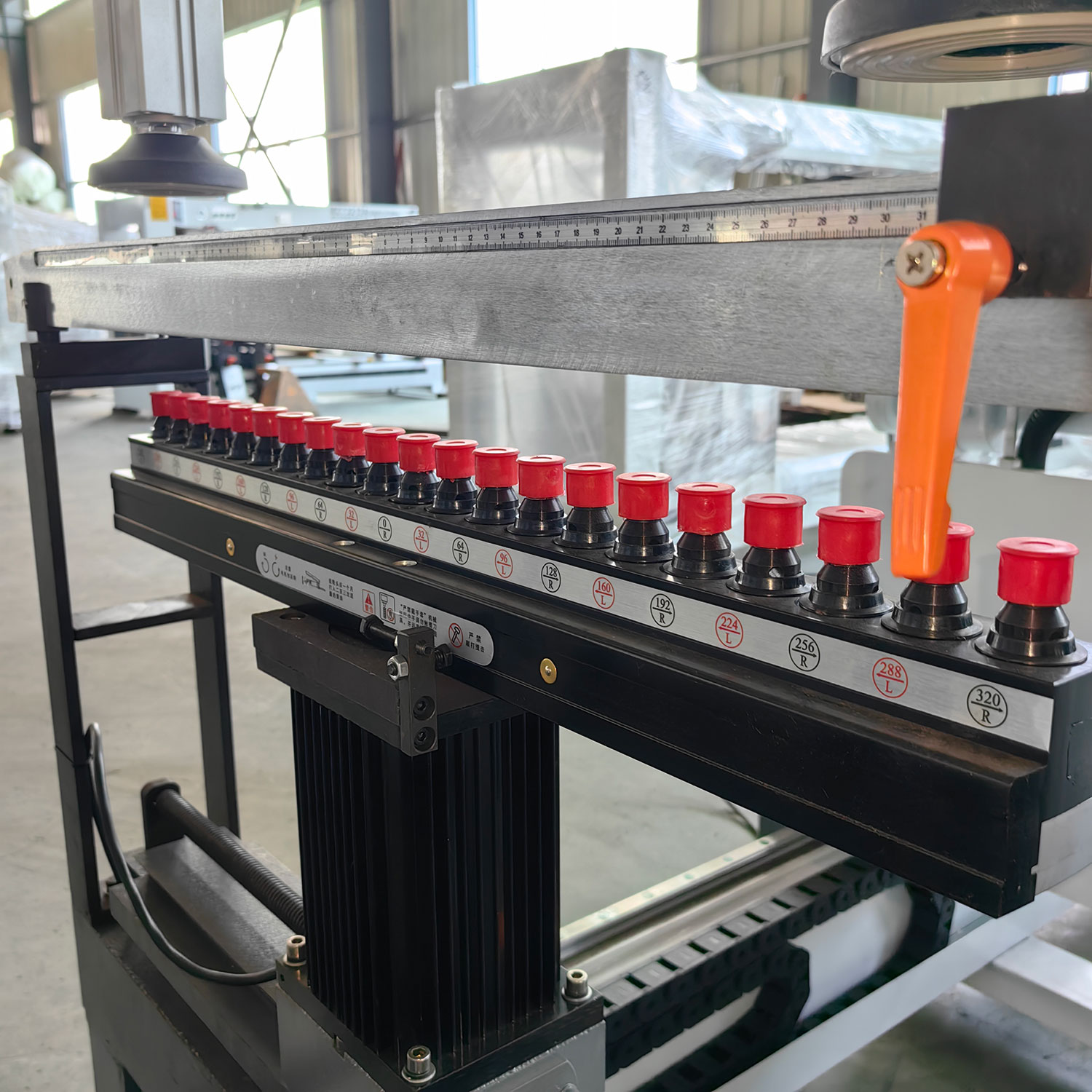

Number of auger spindle21 bits * 4lines
Spindle speed2840r/min
Installed power1.5kw * 4
Air pressure0.6-0.8MPa
Suitable voltage380V 50HZ (Customized voltage)
Min center distance between spindles32mm
Net weight1200KG
Installation size3500*2500*1550mm
Packing Size3600*1220*1700mm
