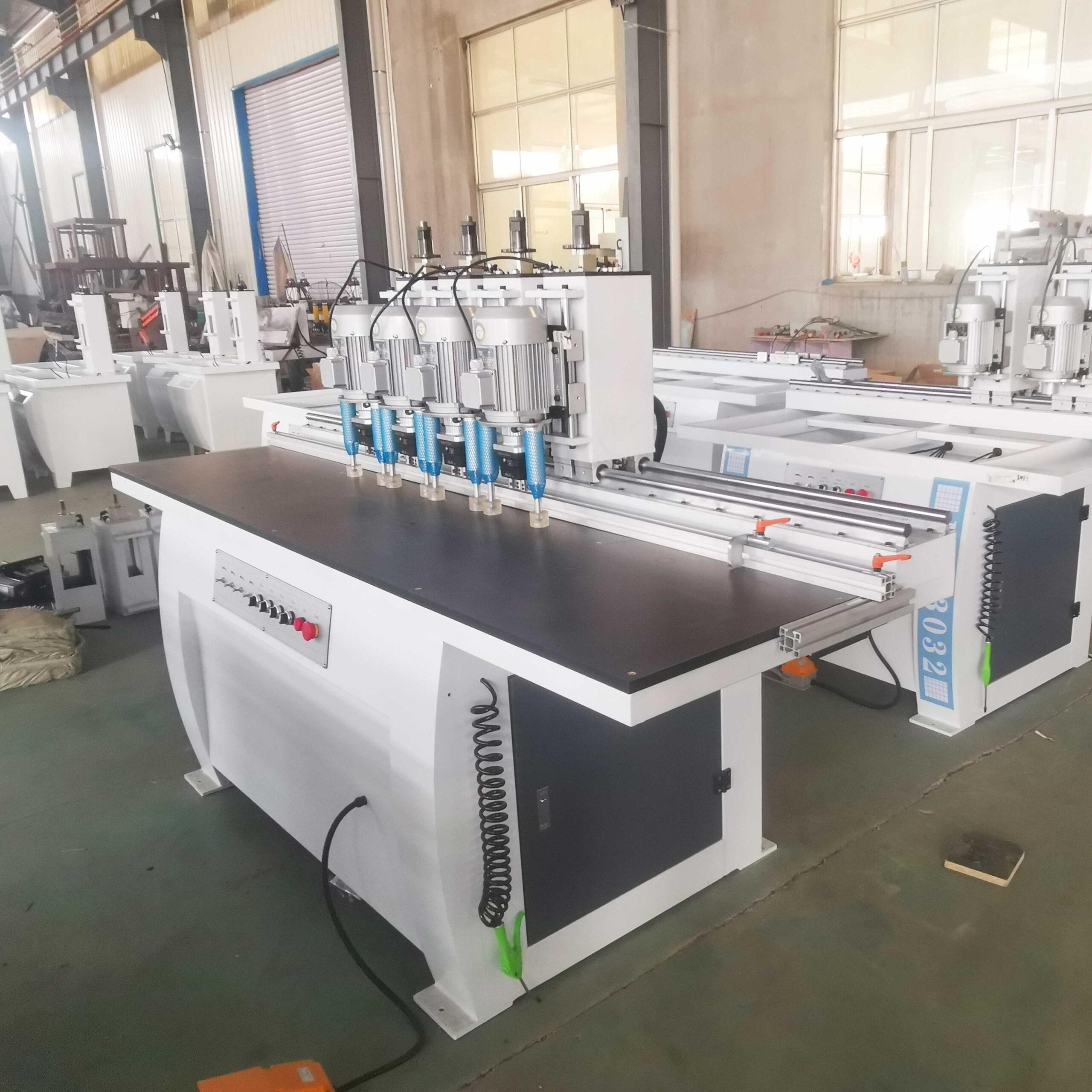

Product info

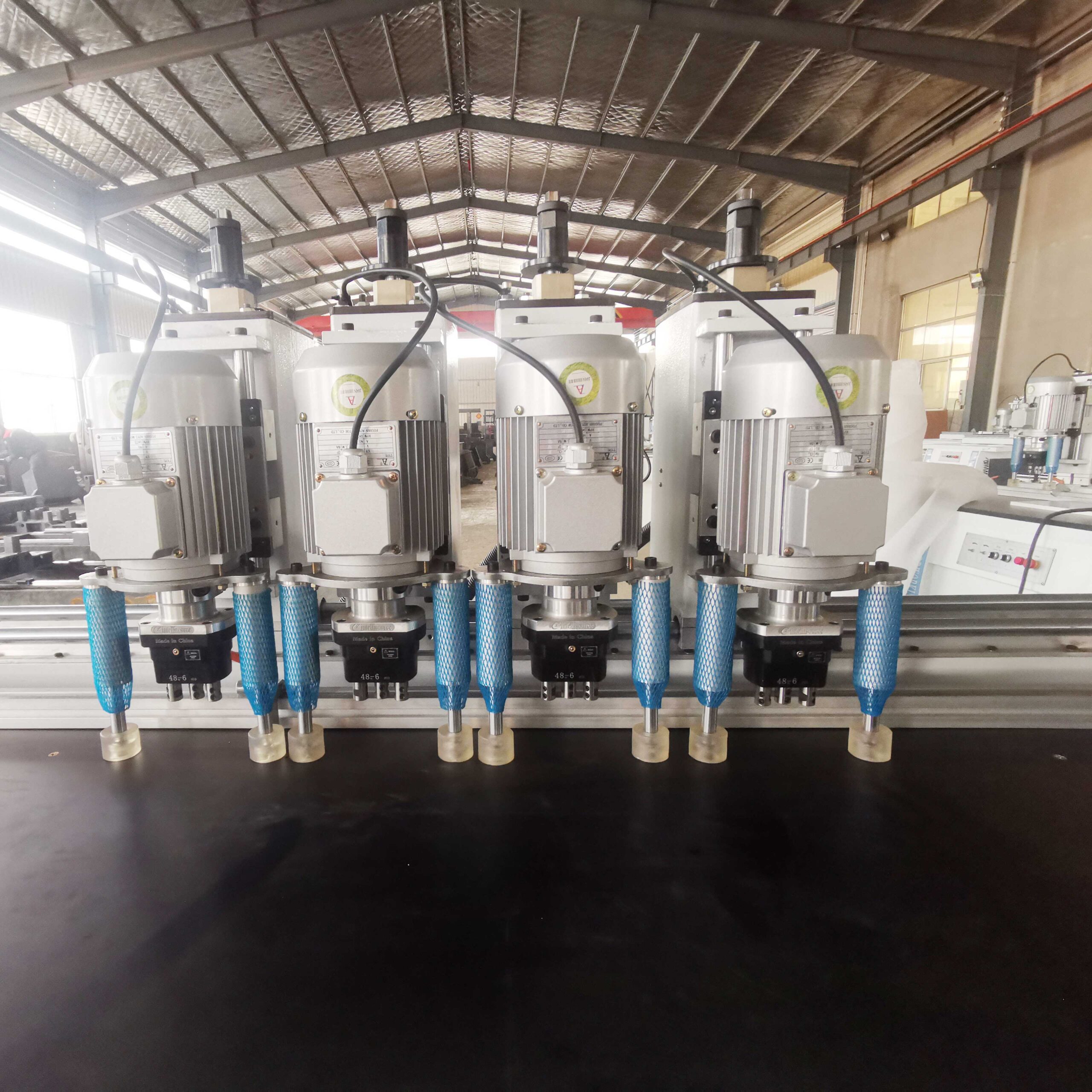

Hinge drill motor
The hinge drill motor uses one 1.5kw pure copper motors, which have strong power. The motor speed is 3660r/min.

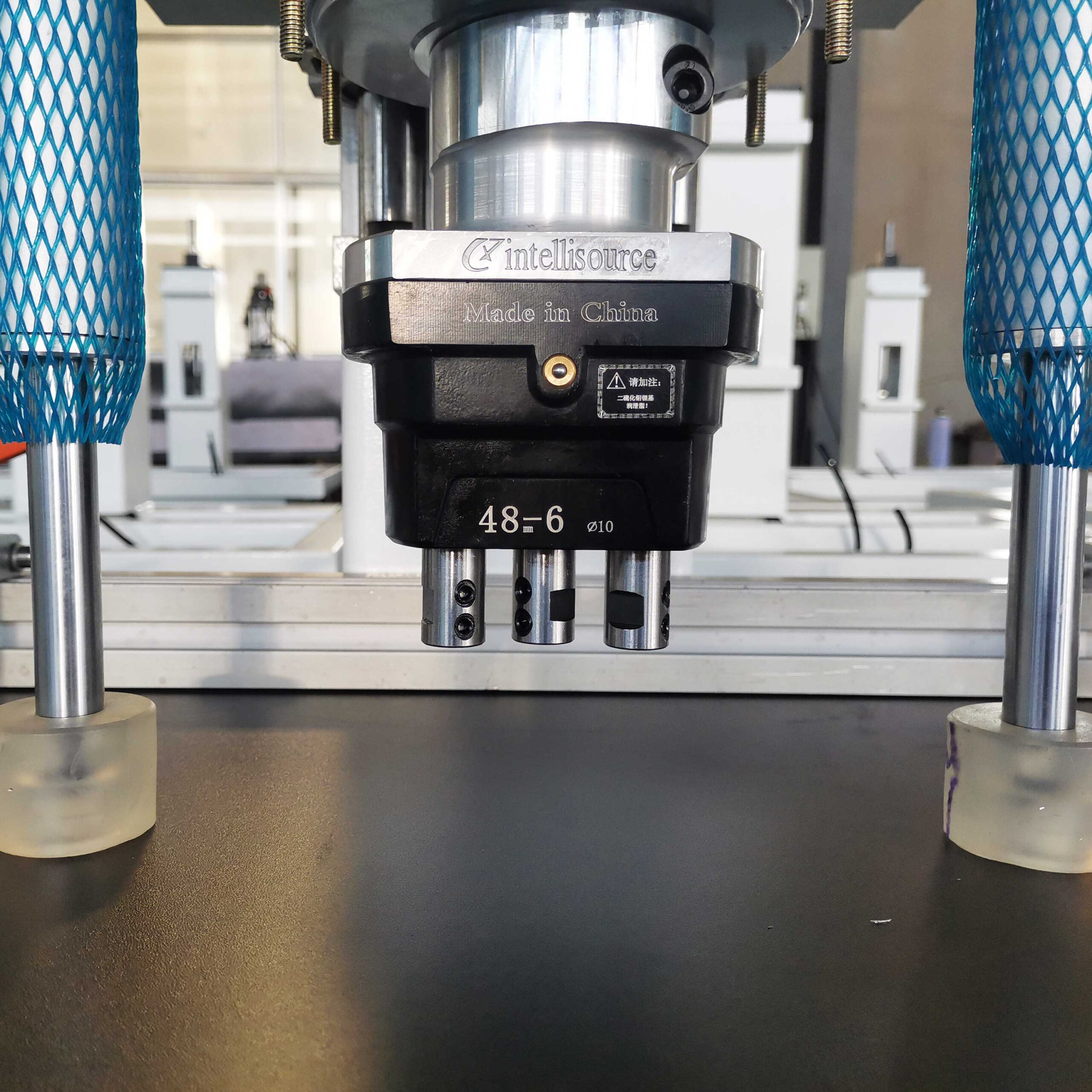

Hinge drill box
The model of hinge drill box is 48-6, the middle drill bit diameter is 35mm, and the two side drill bits diameter is 3mm for positioning screw holes.
Drill positioning baffle
The drilling positioning baffle can locate the drilling position of the plate, making the drilling more accurate.
Motor lifting knob
This position has a scale, which can accurately locate the drilling depth of the plate.
Control panel
The control panel can open and close the motor, and can adjust the air intake to control the descending speed of the motor.
| Model | MZ73034 |
| Max Drill Diameter | ∅ 50mm |
| Max Working Depth | 60mm |
| Vertical Spindle Heads | 220-750mm |
| Number of Spindle | 3x4spindle |
| Spindle Speed | 2840r/min |
| Install Power | 4*1.5kw |
| Air Pressure | 0.6-0.8mpa |
| Overall Size | 2600*1200*1600mm |
| MOQ | 1 pcs |
| Weight | 600kg |
