MZ73033

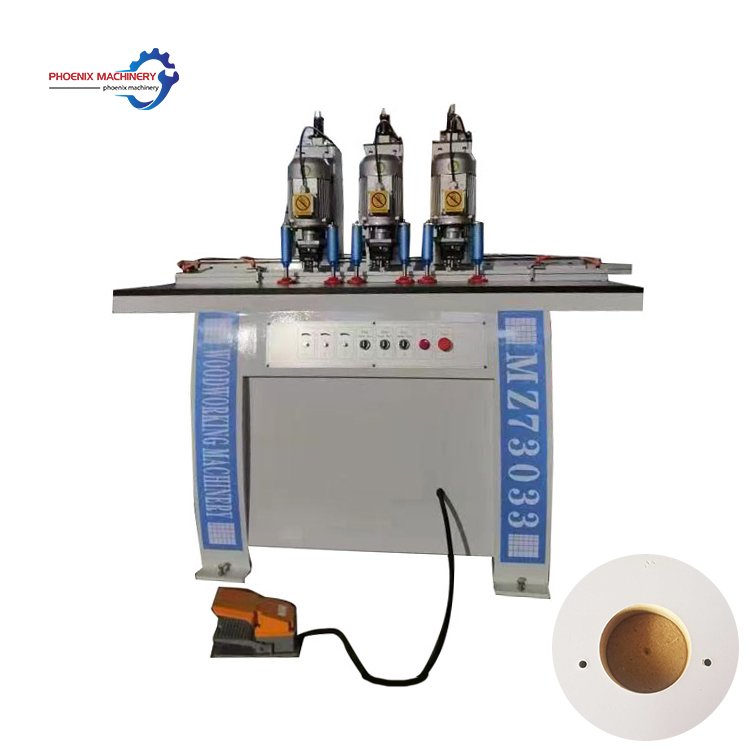

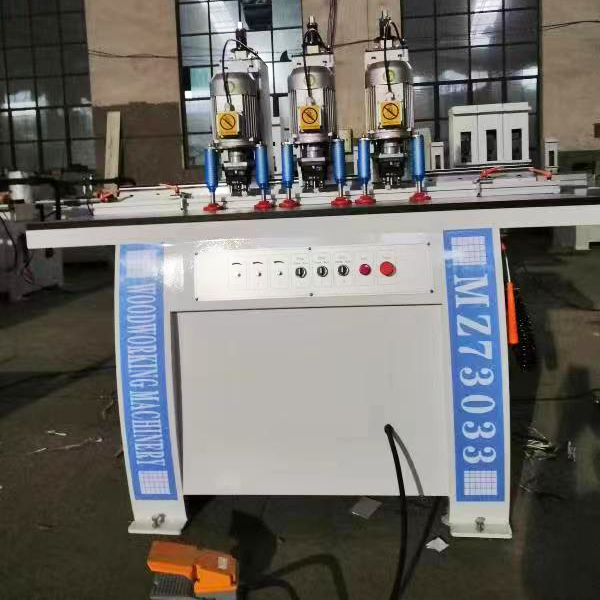

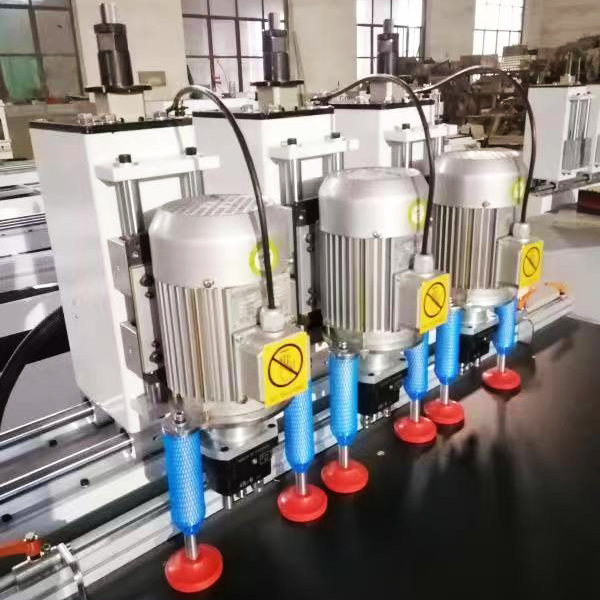

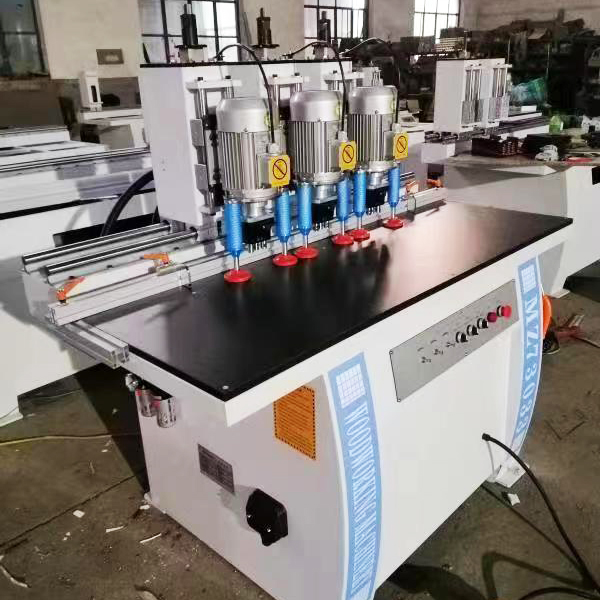

Three head hinge boring machine cabinet woodworking vertical multi boring machine

Product info

This machine is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.

1.The drilling covers a large scope , and all the bits can be installed quickly and conveniently

2 . Mechanical switch to control drilling depth , it can find out the location quickly and accurately

3 . The adoption of imported drillers improves durability

4 . Selection of high quality steel machine parts , and it is never deformation by high strength heat treatment

ModelMZ73033
Max drill diameter50mm
Max working depth60mm
Vertical spindle heads220-750mm
Number of spindle3x4pcs
Spindle speed2840r/min
Install power1.5kw*3
Air pressure0.6-0.8Mpa
Overall size2600*1200*1600mm
Weight600kg
