Product info
1.The machine adopts high quality motor, stable operation, sensitive and reliable braking speed.
2.The structure of the machine is reasonable, the frame welding is perfect, the operation is stable, the noise is small.

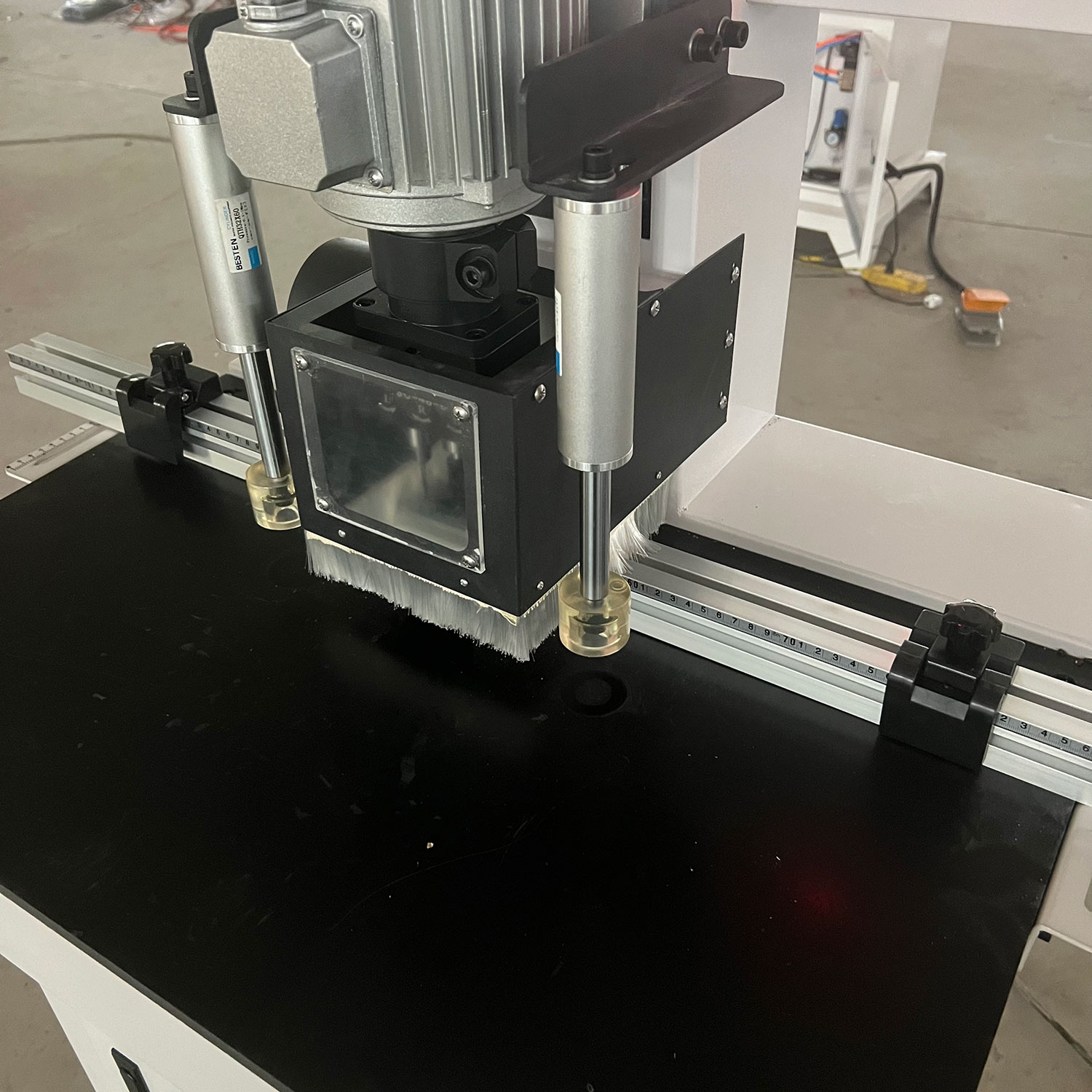

3.The machine adopts high precision drill bit, high precision, small amplitude, long service life.
4.The machine adopts the advanced installation technology, high manufacture precision, reasonable structure, reliable performance, stable operation, simple operation, greatly improves the work efficiency and the overall operation is simple, intuitive and pleasing to the eye.
| Model | MZ73031A | MZB73032 | MZB73033 | MZB73034 |
| Max drilling diameter | 35mm | 35mm | 35mm | 35mm |
| Max drilling deepness | 60mm | 60mm | 60mm | 60mm |
| Max processing length | 1500mm | 1500mm | 1500mm | 1500mm |
| Drill spindle number | 3*1 | 3*2 | 3*3 | 3*4 |
| The motor power | 1.1kw*1 | 1.1kw*2 | 1.1kw*3 | 1.1kw*4 |
| Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
| Overall dimensions | 890*800*1600mm | 1800*900*1700mm | 2200*900*1700mm | 2600*900*1700mm |
| Weight | 80kg | 220kg | 270kg | 350kg |
