Product info

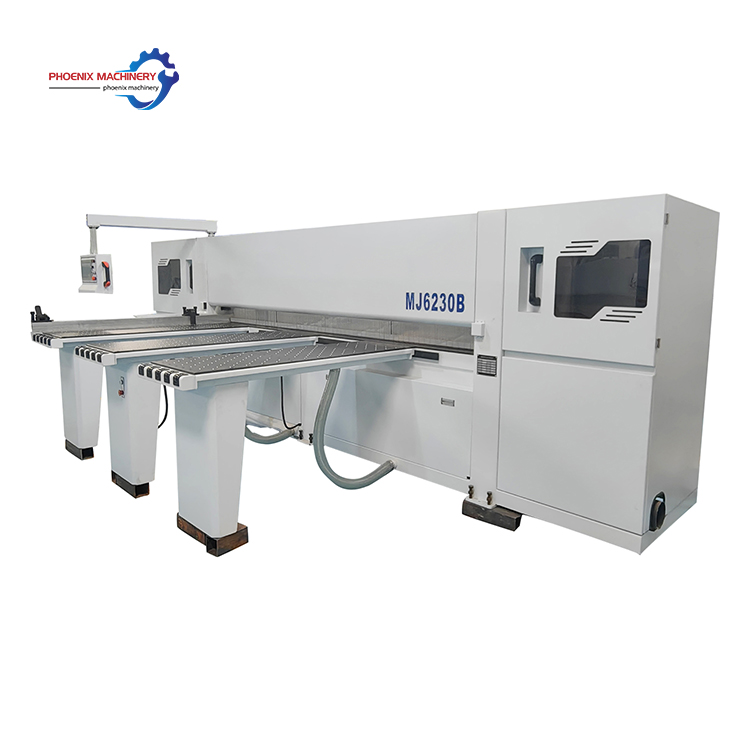

The Computer panel beam cutting saw machine has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in: precision casting of furniture factories, electrical appliances factories, garment factories, toy factories, hardware factories, suitable for mdf, plywood, multilayer board, aluminum board, organic glass board or composite material plates etc.
1,Pneumatic Rapid Loading of Main saw blade
2,Control of elevation by saw blade according to thickness of saw cutting plate
3,Control of lifting height according to the thickness of saw cutting board
4,Imported high strength aluminium alloy sawing machine
5,Saw vehicle servo motor driving
| Model | MJ6230B |
| Length of saw cut | 3000mm |
| Height of saw cut | 100mm |
| Width of saw cut | 2850mm |
| Main saw speed | 48000r/min |
| Positioning method | Manual |
| Sawing precision | ± 0.1mm |
| Main saw motor power | 11kw |
| Main blade outer diameter | 355mm |
| Main saw balde inner diameter | 80mm |
| Traction motor power (rack drive) | 1.5kw |
| Small saw motor power | 2.2kw |
| Vice saw blade outer diameter | 180mm |
| Secondary saw blade inner diameter | 55mm |
| Sawing speed | 0-100M/min,Frequency |
| Air pressure | 0.6-0.7Mpa |
| Weight | About 3800kg |
| Machine size (L*W*H) | 5900*3500*1800mm |
