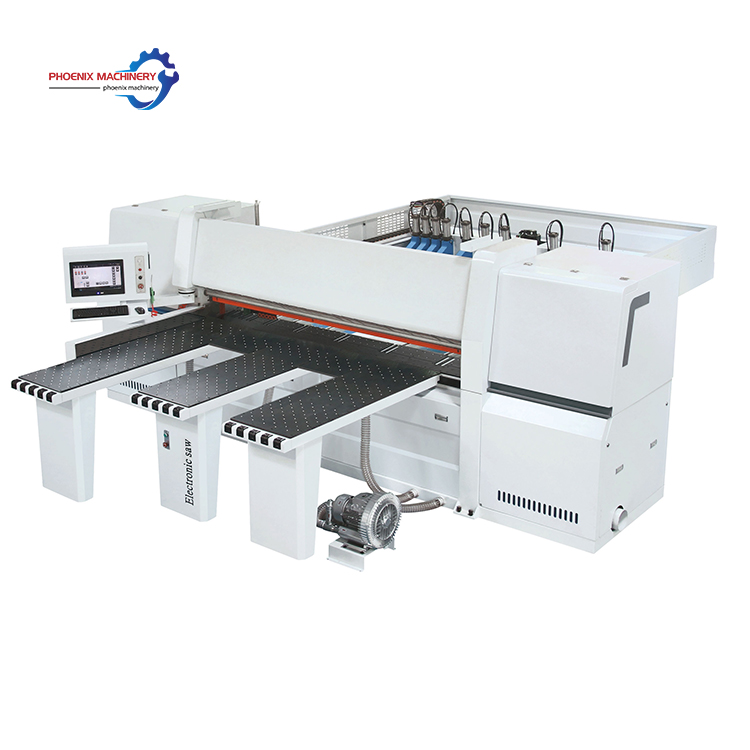

MJ6228A

Product info

1. Using precision linear slide rail, strong stability and high precision.
2. PC Control System
3. Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.

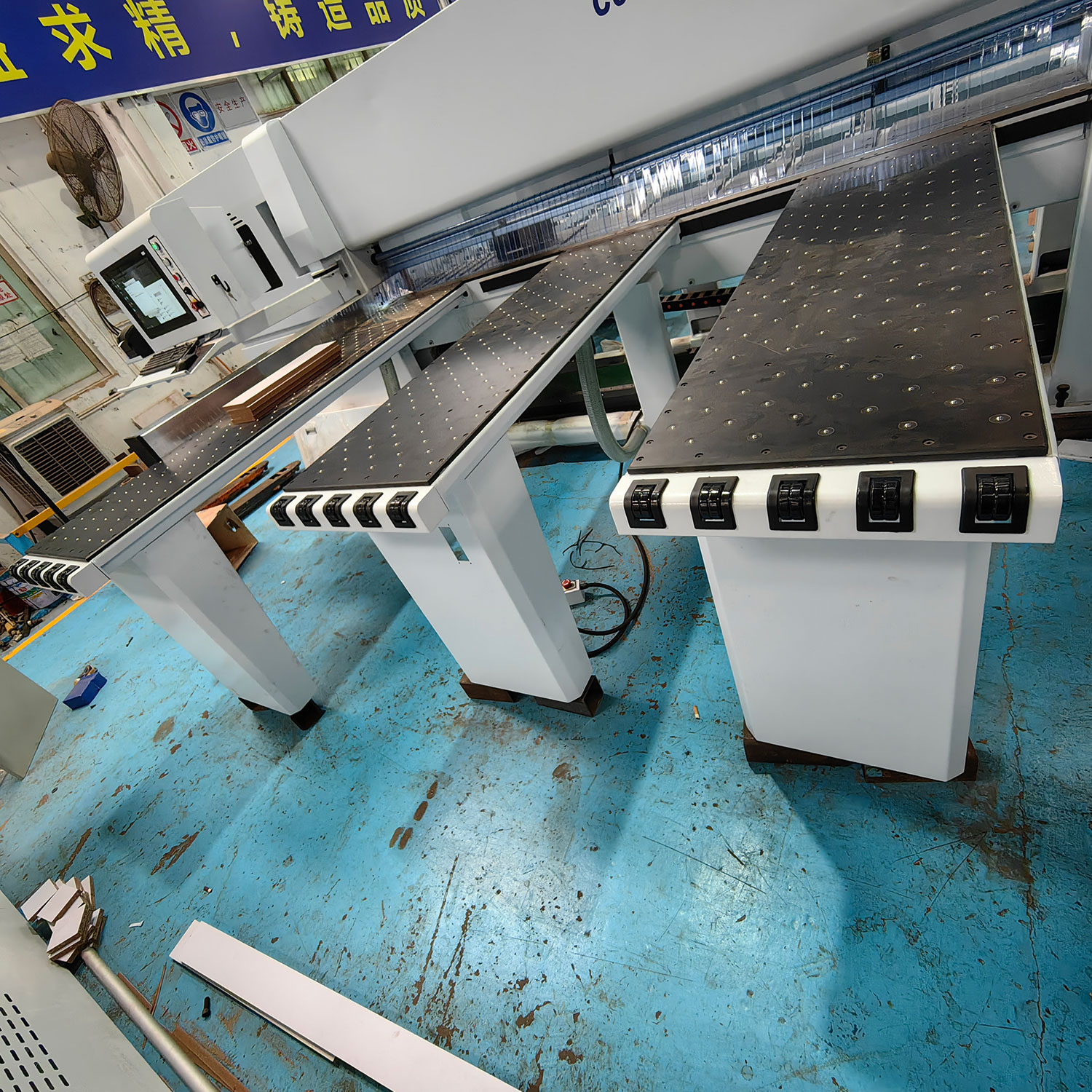

4. Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.
5. The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.

   Model	MJ6228A	MJ6233A	MJ6238A
   Max. cutting length	2800mm	3300mm	3800mm
   Max. cutting thickness	120mm	120mm	120mm
   Main saw blade diameter	Φ450mm	Φ450mm	Φ450mm
   Main saw shaft diameter	Φ75mm	Φ75mm	Φ75mm
   Main saw rotating speed	4100rpm	4100rpm	4100rpm

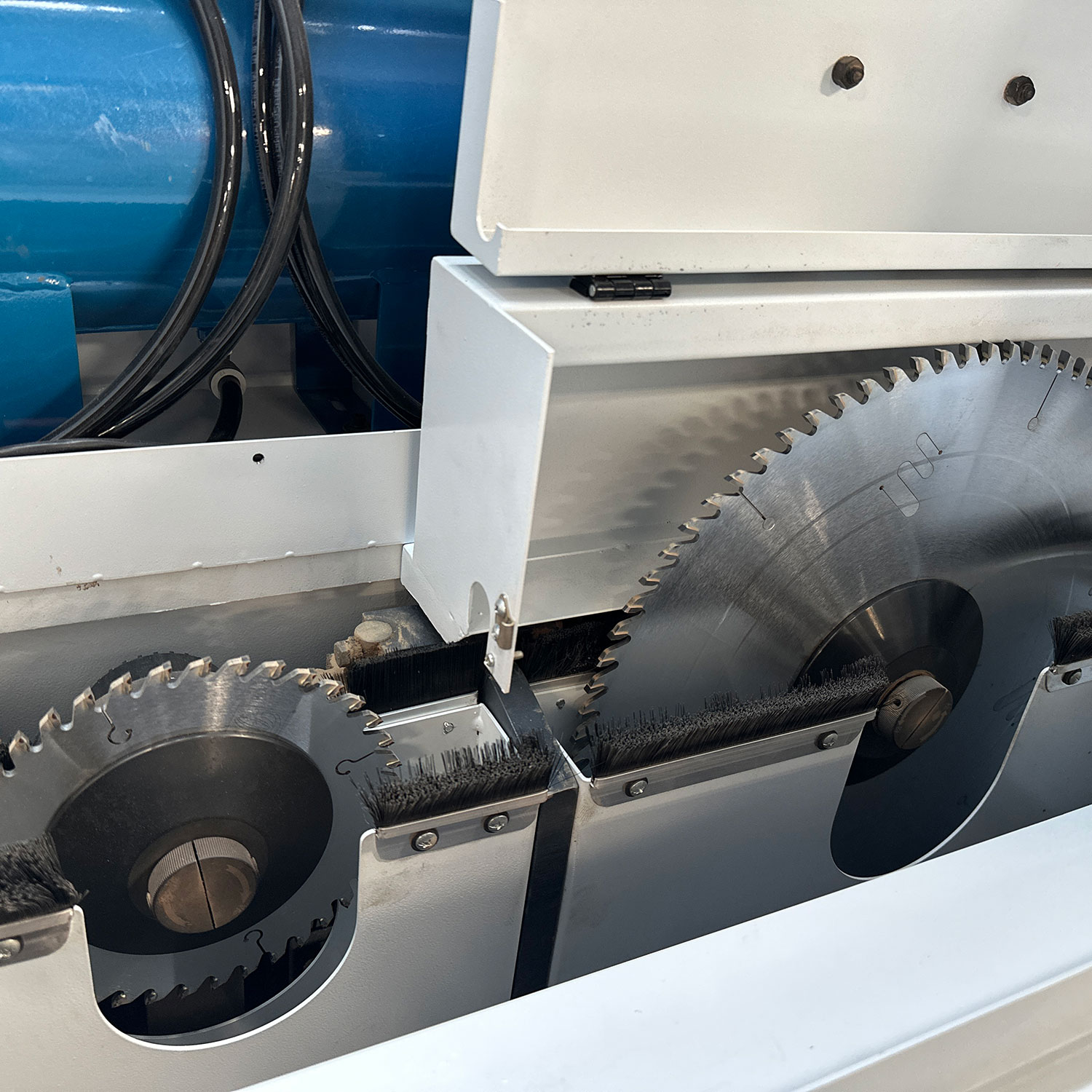

   Scoring saw blade diameter	Φ210mm	Φ210mm	Φ210mm
   Scoring saw blade inner diameter	Φ50mm	Φ50mm	Φ50mm
   Scoring saw rotating speed	6100rpm	6100rpm	6100rpm
   Saw carriage forward speed adjustable	0-100m/min	0-100m/min	0-100m/min
   Saw carriage backward speed adjustable	0-120m/min	0-120m/min	0-120m/min
   Main saw motor	18.5kw	18.5kw	18.5kw
   Scoring saw motor	2.2kw	2.2kw	2.2kw
   Saw carriage driving motor	1.8kw (AC Servo motor)	1.8kw (AC Servo motor)	1.8kw (AC Servo motor)
   Automatic feeding motor	1.8kw (AC Servo motor)	1.8kw (AC Servo motor)	1.8kw (AC Servo motor)
   High pressure fan motor (*2)	4kw、2.2kw	4kw、2.2kw	4kw、2.2kw
   Total power	30.5kw	30.5kw	30.5kw
   Automatic feeding speed	100m/min	100m/min	100m/min
   Air pressure	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
   Mechanical gripper	9	9	10
   Working table height from ground level	960mm	960mm	960mm
   Overall dimension	5100x6300x1900mm	5600x6800x1900mm	6300x7500x1900mm
