Product info
Applicable products:
MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass, solid wood and other wood structure and hardness similar to the plate.
Working principle:
hand move the mobile workbench before and after the move to achieve the sawing process, scribe saw sawing in advance, the main saw blade can be used to carry out variable speed sawing.
Achieved effect:
manual and easy to feed when the labor-saving, high precision, access to good quality sawing.
Structure advantages:

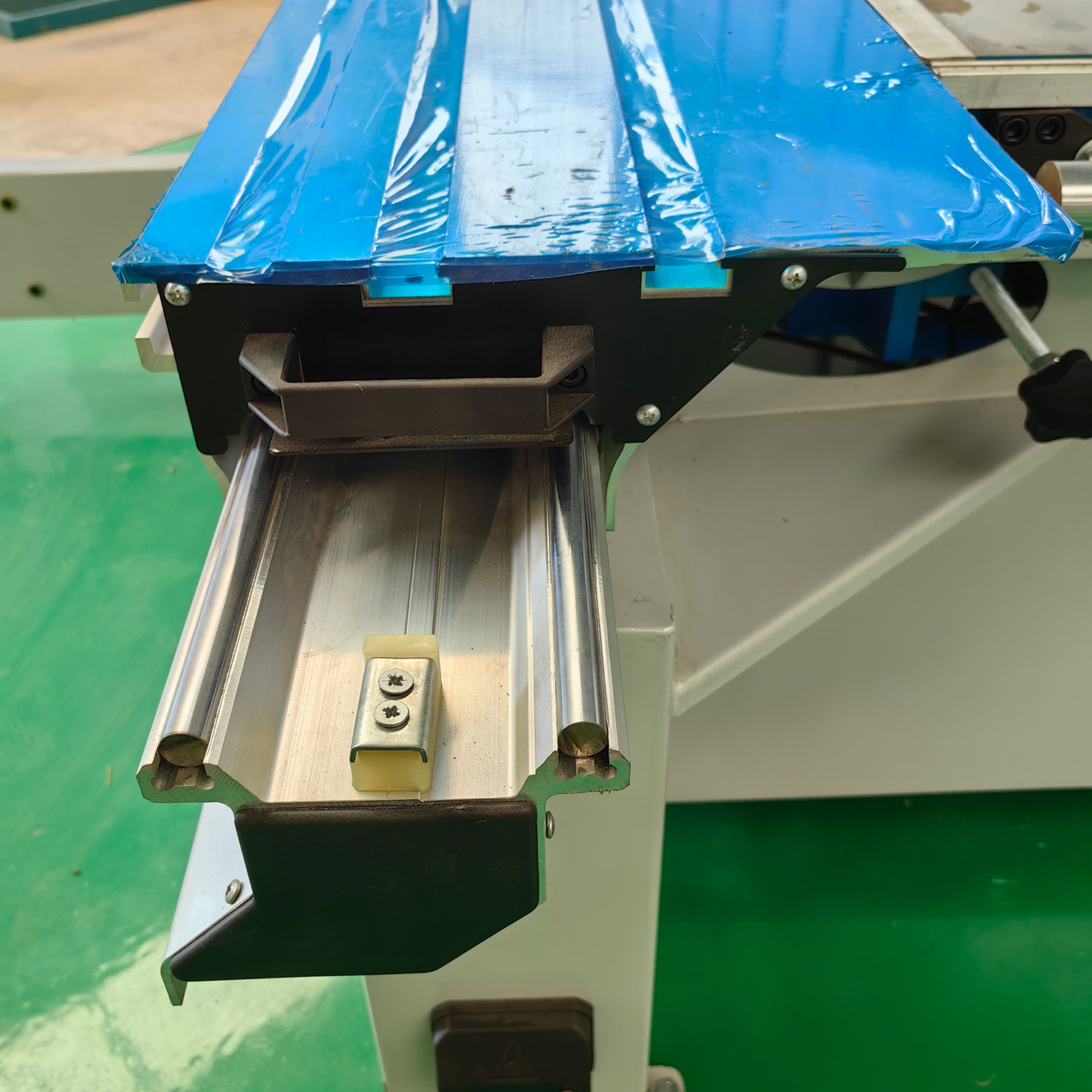

mobile workbench guide rail with high strength extruded aluminum alloy, high strength, nondeformation, chrome rod structure, high positioning accuracy, table surface oxidation treatment, beautiful wear-resistant.

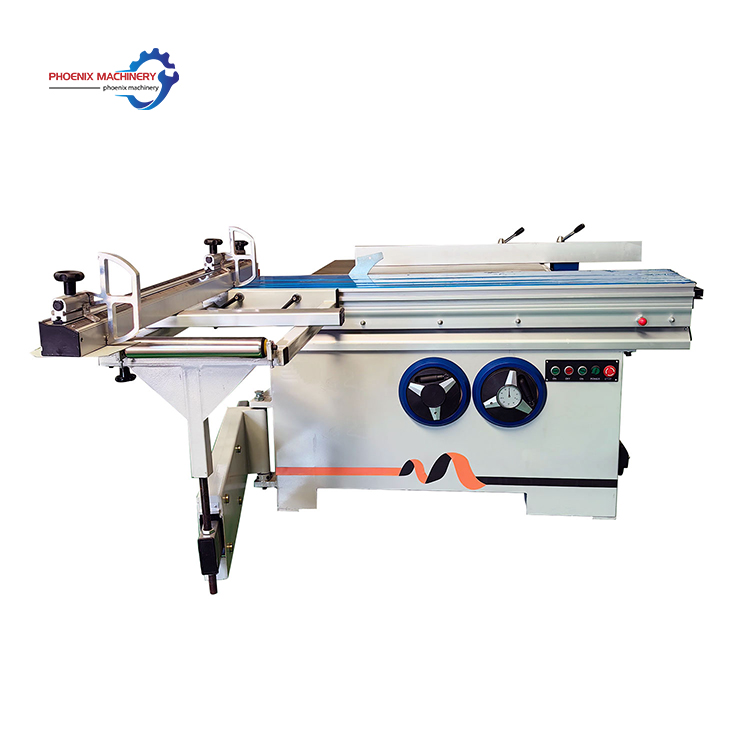

| Model | MJ6116 | Tilt angle | 0-45° |
| Sliding table size | 1600*380mm | Main motor | 5.5kw |
| Maximum cutting length | 1600mm | Scoring saw blade diameter | 120mm |
| Maximum cutting width | 1300mm | Speed of scoring saw blade | 7000-8000rpm |
| Main saw blade diameter | 300mm(250-350mm) | Scoring spindle diameter | 20mm |
| Maximum cutting thickness (300mm blade diameter) | 75mm | Scoring motor power | 1.1kw |
| Spindle speed | 4000-6000rpm | Overall dimension | 1600*3440*900mm |
| Main spindle diameter | 30mm |
