Product info
Wood Cutter Electric Angle Lifting Table Saw for Panels and wood cutting
| PANEL SAW MODEL | MJ3200 | Tilting saw blade | 45°-90° |
| Max cutting length | 3200mm | Height of cut at 45° | 45mm |
| Max cutting width | 3200mm | Height of cut at 90° | 70mm |
| Sliding table length | 3200mm | Main motor | 5.5KW |
| Sliding table width | 390mm | Scoring motor | 1.1KW |
| Main saw blade diameter | 300mm | Electric lift | Including |
| Scoring saw blade diameter | 120mm | Electric tilt | Including |

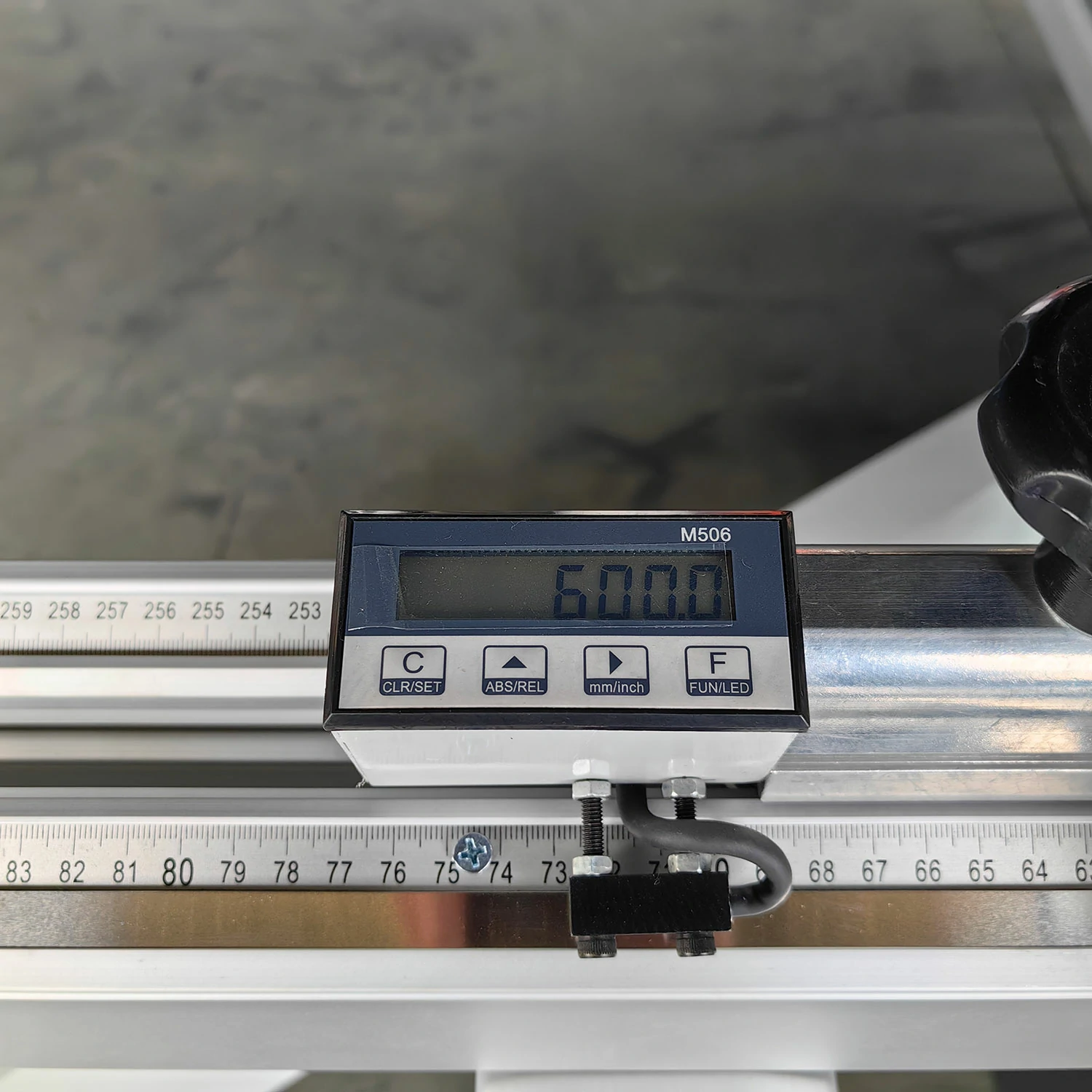

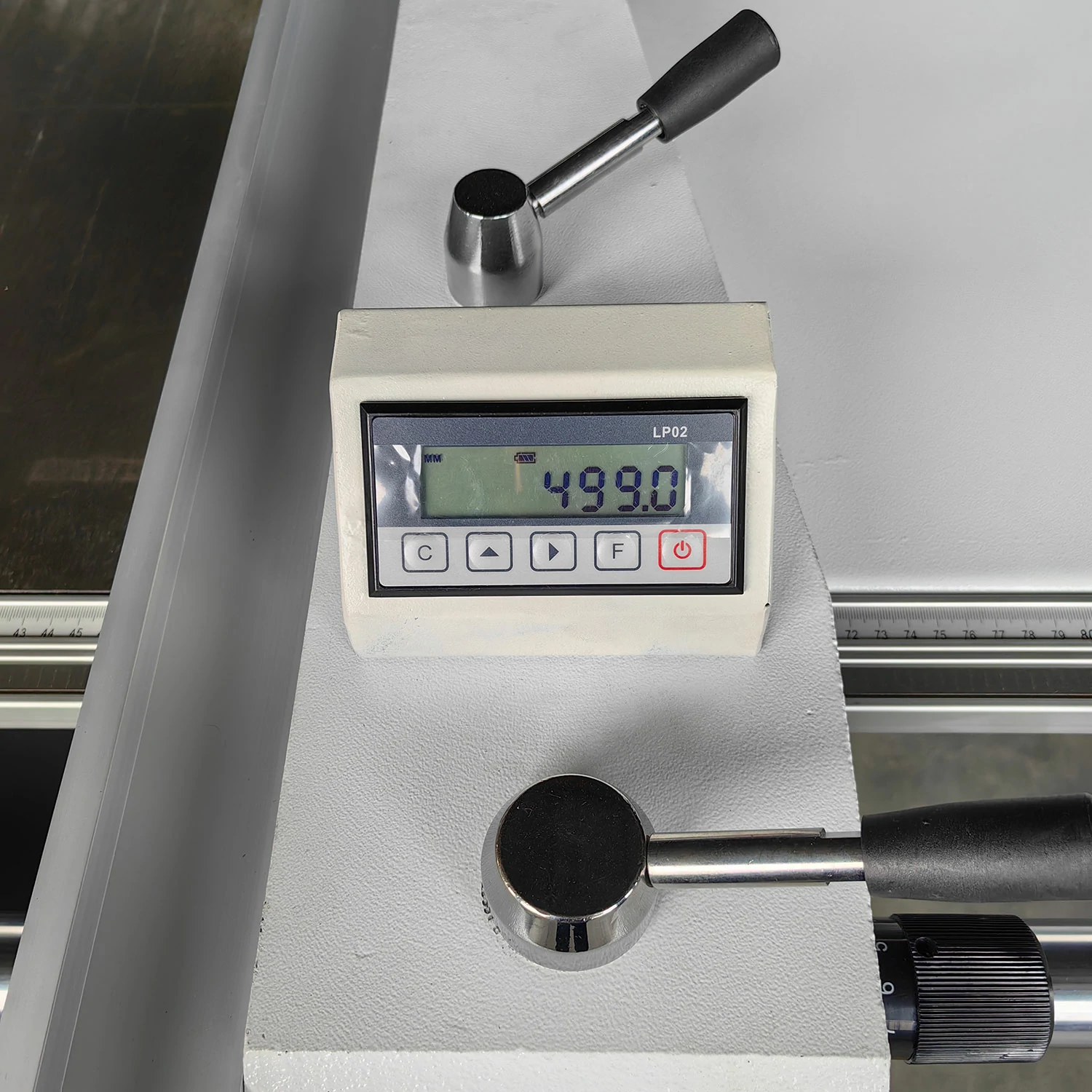

| Main saw spindle speed | 4500-6000rpm | Angle digital display | Including |
| Scoring saw spindle speed | 9000rpm | Package size | Sliding table: 3300*400*240mm Body: 2150*1130*1130mm |
| Main spindle diameter | 30mm | Gross weight | 850kg |
| Scoring spindel diameter | 20mm |
