Product info

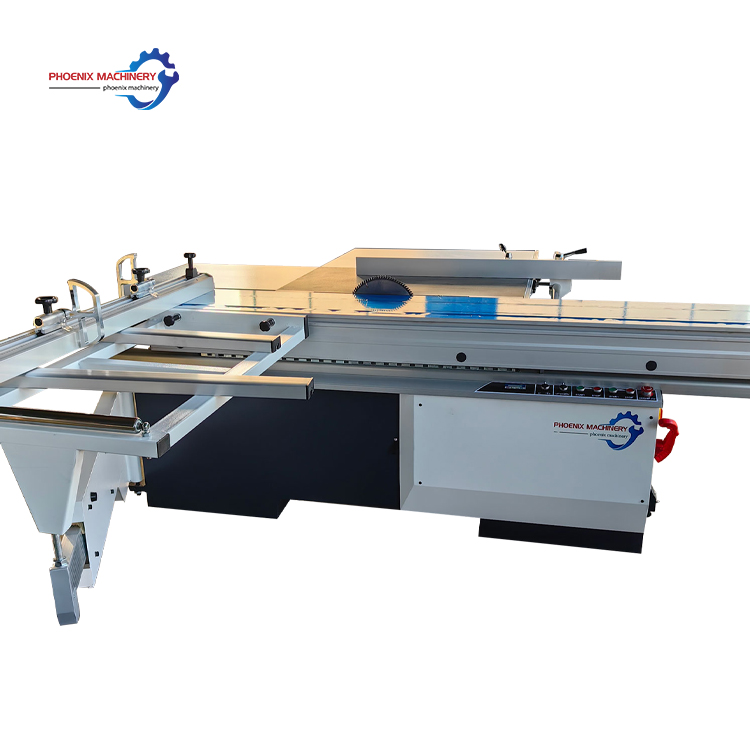

Factory sale high strength Electric lifting tilt wood panel saw machine from factory
| PANEL SAW MODEL | MJ3200 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 390mm |
| Main saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Main saw spindle speed | 4500-6000rpm |
| Scoring saw spindle speed | 9000rpm |
| Main spindle diameter | 30mm |
| Scoring spindel diameter | 20mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 45mm |
| Height of cut at 90° | 70mm |
| Main motor | 5.5KW |
| Scoring motor | 1.1KW |
| Electric lift | Including |
| Electric tilt | Including |
| Angle digital display | Including |
| Package size | Sliding table: 3300*400*240mm Body: 2150*1130*1130mm |
| Gross weight | 750kg |
