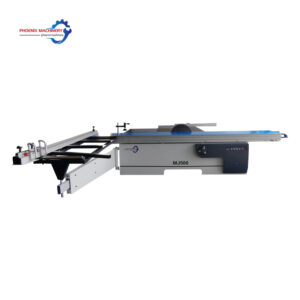

The precision panel saw are used for all kinds of MDF, Chipboard, Man-made board, ABS board, PVC board, Organic glass sheet, solid wood and wood with similar hardness.
* Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
* Import columnar guide rail assembled with sliding table ,higher precision and longer service life.
* The working table surface is oxdation treated, beautiful and hardwearing.
* Best sliding table saw with 0-45 degree tilting.
*Linear guide structure can let the cutting board in good precision .
| Sliding table length * width | 3200*390mm | Tilting saw blade | 45°-90° |
| Max cutting length | 3200mm | Main motor | 5.5kw |
| Max cutting width | 1300mm | Scoring saw blade diameter | 120mm |
| Main saw blade diameter | 300mm (250-400mm) | Scoring saw spindle speed | 7000-8000rpm |
| Height of cut at 90° | 75mm | Scoring spindel diameter | 20mm |
| Main saw spindle speed | 4000-6000rpm | Scoring motor | 1.1kw |
| Main spindle diameter | 30mm | Overall dimensions | 3200*3490*900mm |
