Product info
This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure,reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices;It has edge banding,the upper and lower trimmer, surface polishing work unit; it is a new, multi functional, straight edge banding machine,which is very popular in woodworking furniture factory of all ages.

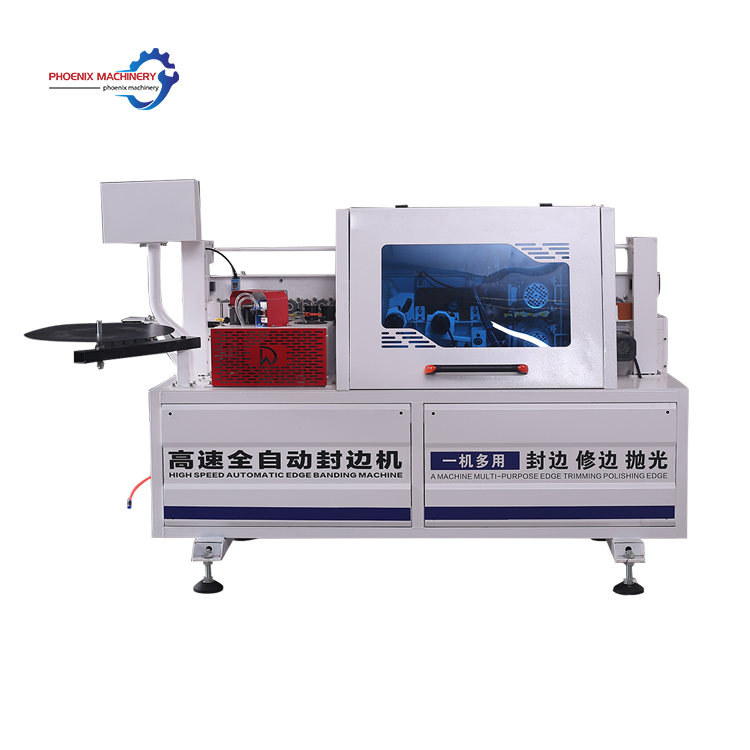

| Model | DW1800 |
| Standard features | Double-sided gluing, top and bottom trimming, top and bottom polishing, front and rear alignment, flexible edge scraping, suck dust |
| Voltage | 380V/220V/415V |
| Minimum length of sheet | 20CM |
| Minimum width of sheet | 10CM |
| Edge banding thickness | 0.3-3MM |
| Edge banding height | 0-50MM |
| Edge power/speed | 160W 0-14M/min |
| Transmission power/speed | 180W 0-14M/min |
| Trimming power/speed | 800W*2 24000r/min |
| Polishing power/speed | 380W*2 |
| Vacuum power | 550W |
| Total power | 4.9KW |
| Glue pot capacity | 4000ml |
| Air source pressure | 0.4-0.6Mpa |
| Product Size | 2200*650*1250mm |
| N.W. | 320KG |
| G.W. | 360KG |
| Package Size | 2050*850*1280mm |
