Product info

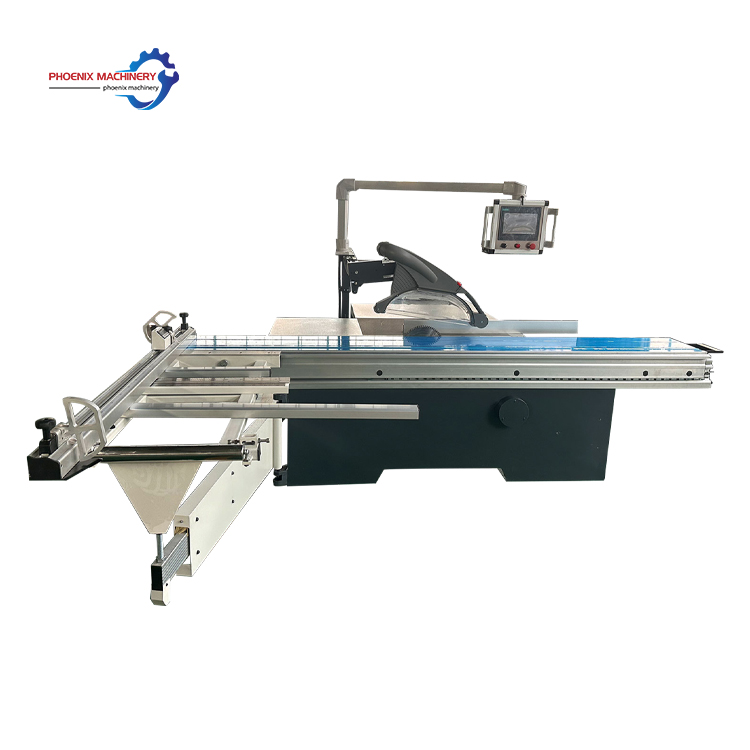

CNC Panel Saw Woodworking Automatic Sliding Table Saw Wood Cutting Machine
| Model | CNC-6132 |
| Dimension of sliding table | 3200*388mm |
| Gross cut capacity | 3100mm |
| Width of cut between saw blade and rip fence | 1240mm |
| Saw blade diameter | 300mm（250-400mm） |
| scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 7000/8000rpm |
| Tilting saw blade | 0-45 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 75mm |
| Height of cut 300mm saw blade at 45 degree | 45mm |
| Main spindle diameter | 30mm |
| scoring spindle diameter | 20mm |
| Size | 3350*3350*900 |
| Net weight | 780kg |
| Gross weight(with plywood wooden package) | 860kg |
